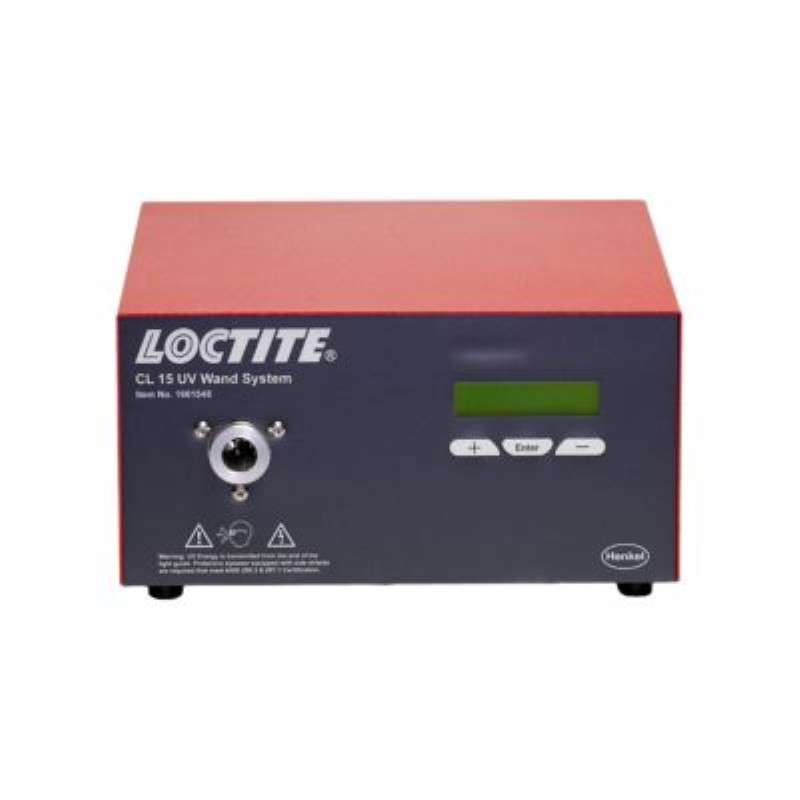

CL15 UV Mercury Arc Spot Curing Wand System with Footswitch, High Output, 100 Watt (Requires Light G

Hisco #:1661548-30769

MFG #:1661548

Made in the USA
$
Manufacturer Lead Time When Not In Stock11 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1

The Loctite 1661548 is a UV wand curing system. The compact tool can be used in manual, timed, or cycle shutter modes.

Loctite 1661548 Features:
  • Powerful mercury arc lamp provides up to 15 watts/cmsq
  • Manual, timed, or cycle shutter operation
  • Complete cycle control-settable parameters include
  • UV exposure time (shutter open)
  • Dwell time (shutter closed)
  • Number of cycles (continuous cycling)
  • Can be operated from an external PLC
  • Small footprint and lightweight
  • Shutter is operated by a reliable rotary solenoid
  • Lamp is disabled if the enclosure lid is removed
  • Light guide interlock safety switch prevents accidental UV exposure if the light guide is not installed
  • Internal dichroic mirror minimizes the transmission of heat caused by "waste energy" while allowing critical UV light to pass
  • Light guide receptacle with screw lock allows proper balancing of multi-pole lightguides No additional balancing adapter required
Loctite 1661548 Specifications:
  • Voltage Rating: 90 to 260V ac
  • Dimensions: 5.5 x 12.5 x 9.75in
  • Lamp Type: 100 W Mercury Arc
  • Light Power Rating: 15W/cm²
  • Color: Red
  • Primary Color: Red
  • Includes Light Guide (Yes/No): No
  • Width: 12.5in
  • Depth: 9.75in
  • Height: 5.5in
  • Includes: Operation Manual, Ultraviolet Protection Glasses, AC Power Cord, Foot Switch, High Pressure Mercury Arc Lamp

Product Description

The Loctite 1661548 is a UV wand curing system. The compact tool can be used in manual, timed, or cycle shutter modes.

Loctite 1661548 Features:
  • Powerful mercury arc lamp provides up to 15 watts/cmsq
  • Manual, timed, or cycle shutter operation
  • Complete cycle control-settable parameters include
  • UV exposure time (shutter open)
  • Dwell time (shutter closed)
  • Number of cycles (continuous cycling)
  • Can be operated from an external PLC
  • Small footprint and lightweight
  • Shutter is operated by a reliable rotary solenoid
  • Lamp is disabled if the enclosure lid is removed
  • Light guide interlock safety switch prevents accidental UV exposure if the light guide is not installed
  • Internal dichroic mirror minimizes the transmission of heat caused by "waste energy" while allowing critical UV light to pass
  • Light guide receptacle with screw lock allows proper balancing of multi-pole lightguides No additional balancing adapter required
Loctite 1661548 Specifications:
  • Voltage Rating: 90 to 260V ac
  • Dimensions: 5.5 x 12.5 x 9.75in
  • Lamp Type: 100 W Mercury Arc
  • Light Power Rating: 15W/cm²
  • Color: Red
  • Primary Color: Red
  • Includes Light Guide (Yes/No): No
  • Width: 12.5in
  • Depth: 9.75in
  • Height: 5.5in
  • Includes: Operation Manual, Ultraviolet Protection Glasses, AC Power Cord, Foot Switch, High Pressure Mercury Arc Lamp

Technical Information

BrandLoctite
Weight: 8.5
Country Of Origin: US
Tariff Code: 8419.39.9999
UPC Code: 79340988507
$
