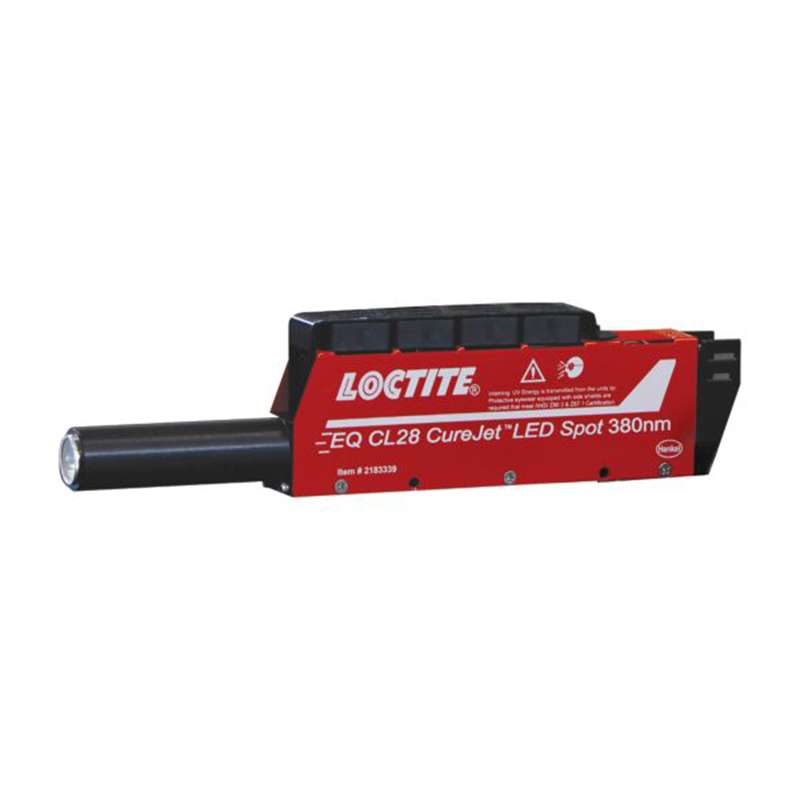

EQ CL28 CureJet 380 LED Light Source

The Loctite 2183339

LOCTITE® CL28 CureJet LED Spot Curing Light Sources provide enduring, energy-efficient performance with instant on/off capability in stackable LED heads (side-by-side). Available in 380nm wavelength (item #2183339) and 405nm wavelength (item #2183340), these CL28 Light Sources are compatible with both the CureJet LED Spot Curing Single Controller (item #1364033) and the CureJet LED Spot Curing Quad Controller (item #1180632). They deliver high intensity and cover a wide curing area.

Features:

• Long-life, energy-efficient, instant on/off
• Wide spot cure area: up to 20mm
• LED heads stackable side-by-side
• Included in the box: (1) CL28 CureJet LED Light Source

Specifications:

• Applications: LED spot curing
• Bulb type, Recommended: LED
• Light intensity, For 380nm source: 1.0 W/cm² - 18.0 W/cm²
• Light intensity, For 405nm source: 1.0 W/cm² - 27.0 W/cm²
• Operating type: UV vis
• Used to dispense: UV and visible light cure adhesives
• Wavelength, Item #2183339: 380.0 nm
• Wavelength, Item #2183340: 405.0 nm
