Parker
Solid-O Shape Electrically Conductive Elastomer Extruded Shielding Gaskets, .07in, 1.78mm
Hisco #:10-04-1687-L6303-5200
MFG #:10-04-1687-L6303
Available to Order - 0 on Hand
Manufacturer Estimated Lead Time When Not In Stock: 56 days
Minimum Order QTY: 1 Foot
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1

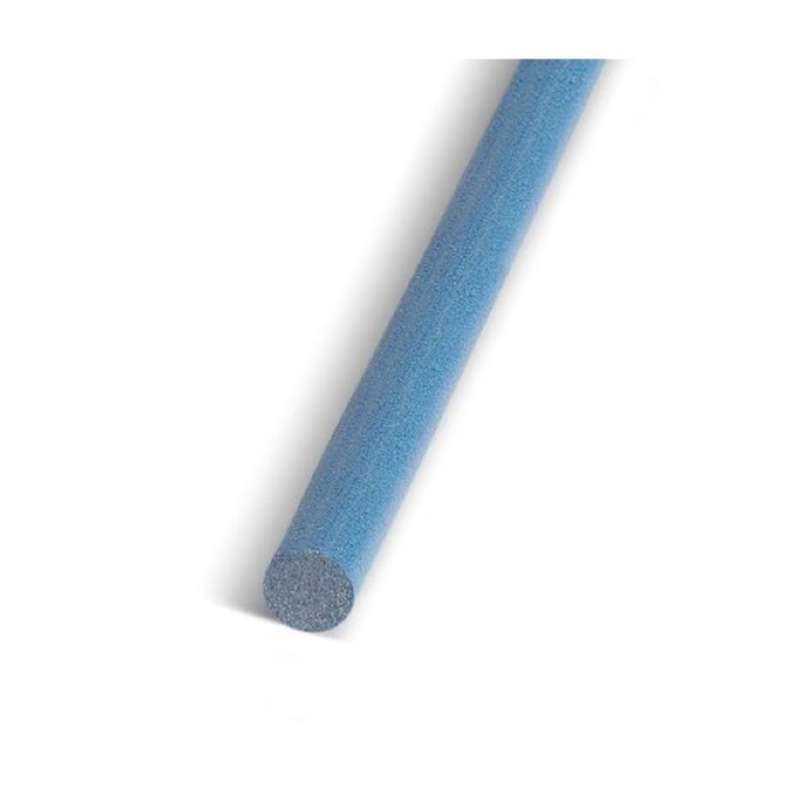

The Parker 10-04-1687-L6303 is a solid-o shape electrically conductive elastomer extruded gasket.
Parker 10-04-1687-L6303 Features:- Superior reliability
- Cost effective
- Flexible design
- Brand: Parker
- Series: CHO-SEAL
- Filler Material: Nickel-Graphite
- Durometer: 60 to 69 (Shore A)
- Elastomer: Fluorosilicone
- Specific Gravity: 2.2
- Tensile Strength: 150 psi, 1.03 MPa
- Maximum Operating Temperature: 150°C
- Thermal Conductivity: 0.8 W/m-K
- Noise Shielding Level: 100 dB @ 2 GHz
- Shape: Solid-O
Product Description
Technical Information
Back to top
Product Description
The Parker 10-04-1687-L6303 is a solid-o shape electrically conductive elastomer extruded gasket.
Parker 10-04-1687-L6303 Features:- Superior reliability
- Cost effective
- Flexible design
- Brand: Parker
- Series: CHO-SEAL
- Filler Material: Nickel-Graphite
- Durometer: 60 to 69 (Shore A)
- Elastomer: Fluorosilicone
- Specific Gravity: 2.2
- Tensile Strength: 150 psi, 1.03 MPa
- Maximum Operating Temperature: 150°C
- Thermal Conductivity: 0.8 W/m-K
- Noise Shielding Level: 100 dB @ 2 GHz
- Shape: Solid-O
Technical Information
Brand: Parker
Country Of Origin: US
Harmonized Code: 3926.90.4590
Available to Order - 0 on Hand
Minimum Order QTY: 1 Foot
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
