Laser Shaft Alignment Tool

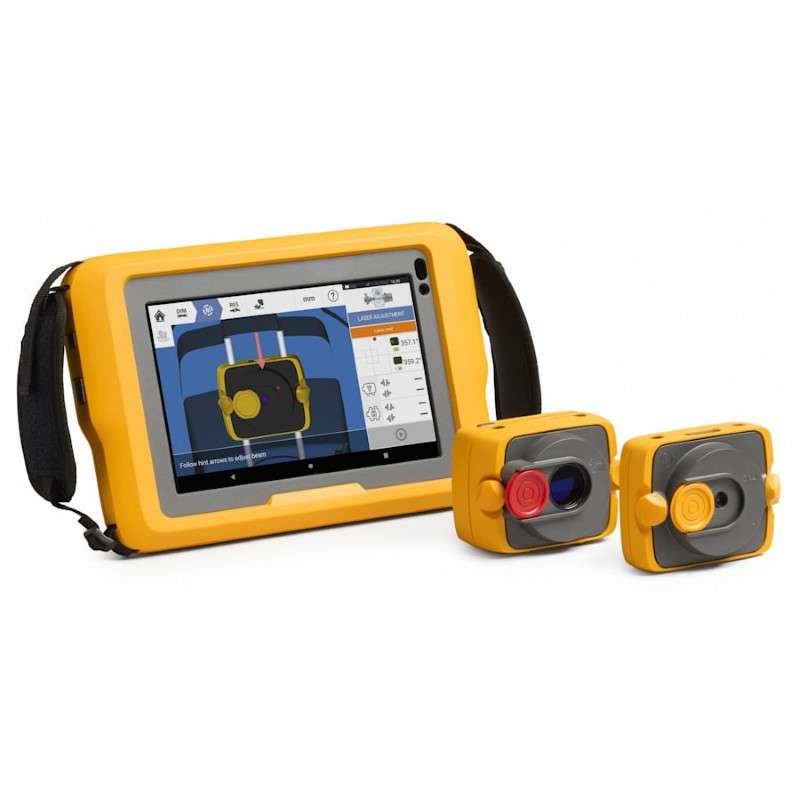

Fluke 832 Laser Shaft Alignment Tool for Standard Machines

The Fluke 832 is a laser-based shaft alignment system built for common industrial machines and other rotating equipment. Its single‑laser, dual‑detector design streamlines setup, reduces the time needed to take measurements, and enables technicians to achieve accurate alignment with fewer corrections. With real‑time movement guidance, several measurement options, Soft Foot correction features, and automatic report generation, it enhances alignment speed, precision, and maintenance recordkeeping.

Key Specifications

• 10.5-inch tablet with 8-inch Corning Gorilla Glass display

• Single-laser (0.1° resolution), dual-detector shaft alignment system

• Supports simultaneous live move corrections in horizontal and vertical directions using active situational intelligence

• Includes Soft Foot detection and correction workflow

• Offers Continuous Sweep and 8-Point Active Clock measurement modes

• Provides automatic out-of-range notifications during alignment

• Includes measurement quality checks such as Quality Factor and Standard Deviation

• Supports static machine and multiple foot position setups, including uncoupled shafts

• Generates reports, log asset-specific IDs, and offers ROI calculation tools

• Email results quickly via built-in templates

Key Benefits

• Speeds up laser shaft alignment by simplifying setup and reducing unnecessary pre-alignment steps

• Provides live move feedback so technicians can make horizontal and vertical corrections with confidence

• Supports accurate shaft alignment on standard rotating equipment, even when shaft rotation is limited

• Addresses common field complications without switching systems or losing time.

• Improves maintenance reporting with alignment records, asset-based documentation, and ROI tracking tools

Application Uses

• Laser shaft alignment for motors, pumps, and other standard rotating machines in industrial facilities

• Shaft alignment on machinery with full rotation or limited rotation measurement conditions

• Alignment work on static machine setups and machines with multiple foot positions

• Soft Foot detection and correction before completing final shaft alignment

• Capturing and sharing shaft alignment data for maintenance records, reporting, and asset history tracking

What's Included

• Fluke Shaft Alignment Tablet

• 832 Sensor

• 832 Laser

• Accessories and Documentation
