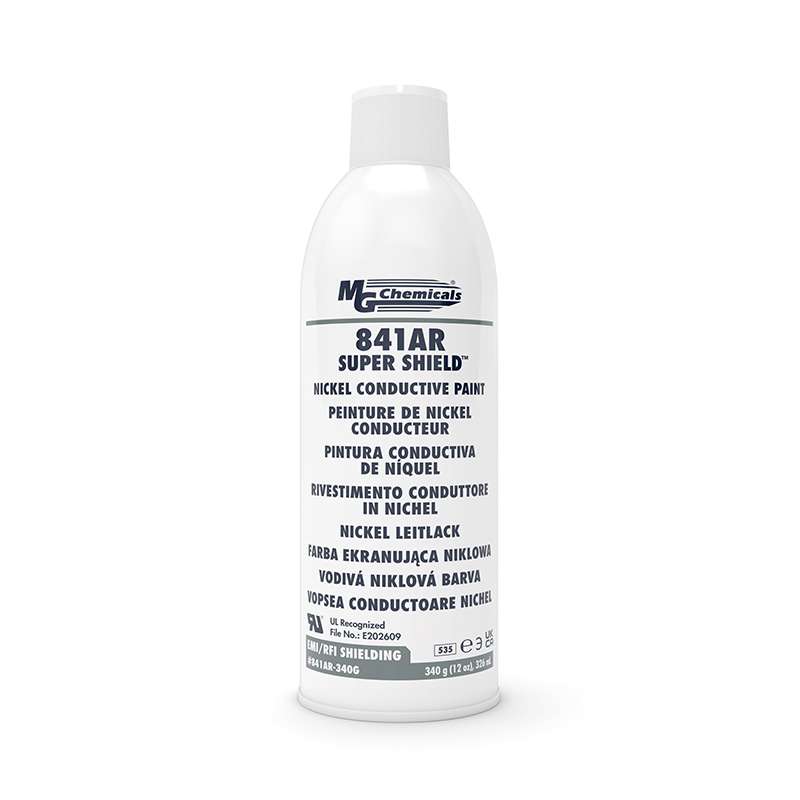

Super Shield™ Nickel Conductive Coating, 12oz Aerosol
Hisco #:841AR-340G-33018
MFG #:841AR-340G
Our Price: $55.20 EA
List Price: Manufacturer Lead Time When Not In Stock: 18 days
Minimum Order QTY: 6
Item must be ordered in multiples of 6
Item must be ordered in multiples of 6
| Quantity | Price | Save |
|---|---|---|
| 18 | 53.82 | Save 2% |
This item is hazardous and may be subject to an additional handling fee.
The MG Chemicals 841AR-340G is a steel gray conductive coating that comes in a 340 g can. The conductive coating is designed to provide high oxidation resistance and durability.
MG Chemicals 841AR-340G Features:- Low VOC HAP Free Does not contain toulene, xylene, or MEK
- Product Type: Conductive Coating
- Material Compatibility: Electronic Devices
- Physical Form: Liquid
- Coverage Area: <9ft²
- Container Type: Aerosol
- Container Capacity: 340g
- Dry Time: 30 to 45s
- Cure Time: 24h
- Chemical Composition: Nickel Flake, Acrylic Resin, Talc, Toluene, Acetone
- Application Method: Paintbrush, Spray Gun, Dip
- Shelf Life: 3yr
- Odor: Ethereal
- Specific Gravity: 1.24
- Viscosity Measurement: 100cP
- Flash Point: -0.4°F
- Storage Conditions: Dry Area away from Sunlight
- Maximum Operating Temperature: +120°C
- Minimum Operating Temperature: -40°C
- Color: Steel Gray
- Primary Color: Gray
- Applications: Electronic Devices
- UL Recognized
- Tested in compliance with IEEE Standard 299-1997
- High Conductivity-0.0042 ?.cm and 0.6 ?/square for one coat
- Repairable and removable thermoplastic paint system
- Tough and durable coat, salt spray tested with excellent weather ability
- Stronger adhesion than water based coatings
- Median attenuation 50 dB ±25 dB per 38 mm for frequency range of 10 to 18,000 MHz
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
This item is hazardous and may be subject to an additional handling fee.
The MG Chemicals 841AR-340G is a steel gray conductive coating that comes in a 340 g can. The conductive coating is designed to provide high oxidation resistance and durability.
MG Chemicals 841AR-340G Features:- Low VOC HAP Free Does not contain toulene, xylene, or MEK
- Product Type: Conductive Coating
- Material Compatibility: Electronic Devices
- Physical Form: Liquid
- Coverage Area: <9ft²
- Container Type: Aerosol
- Container Capacity: 340g
- Dry Time: 30 to 45s
- Cure Time: 24h
- Chemical Composition: Nickel Flake, Acrylic Resin, Talc, Toluene, Acetone
- Application Method: Paintbrush, Spray Gun, Dip
- Shelf Life: 3yr
- Odor: Ethereal
- Specific Gravity: 1.24
- Viscosity Measurement: 100cP
- Flash Point: -0.4°F
- Storage Conditions: Dry Area away from Sunlight
- Maximum Operating Temperature: +120°C
- Minimum Operating Temperature: -40°C
- Color: Steel Gray
- Primary Color: Gray
- Applications: Electronic Devices
- UL Recognized
- Tested in compliance with IEEE Standard 299-1997
- High Conductivity-0.0042 ?.cm and 0.6 ?/square for one coat
- Repairable and removable thermoplastic paint system
- Tough and durable coat, salt spray tested with excellent weather ability
- Stronger adhesion than water based coatings
- Median attenuation 50 dB ±25 dB per 38 mm for frequency range of 10 to 18,000 MHz
Technical Information
Brand: MG Chemicals
Applications: Sensors; Controllers; Receivers; Test Equipment; Scientific Equipment; Medical Equipment; Communication Devices; Satellite Dishes and Radar Systems; Antennas; Aerospace Applications; Electric Vehicles; Cable Boxes; Networking Gear, Firewalls; Militar
Chemical Composition: Nickel; Acetone; Propane; Dimethyl Carbonate; Isobutane; N-Butyl Acetate; Heptan-2-One; 1-Methoxy-2-Propanol Acetate
Color: Dark Gray
Container Capacity: 12 oz
Container Type: Aerosol Can
Cure Time: 24 h
Dry Time: 24 h
Flash Point: 1.4 °F
Height: 2.0 in.
Length: 8.0 in.
Material Compatibility: Nickel
Maximum Operating Temperature: +248 °F (Constant Service)
Maximum Storage Temperature: 122
Minimum Operating Temperature: -40 °F (Constant Service)
Odor: Acetone-Like
Physical Form: Liquid
Primary Color: Gray
Product Type: Conductive Coating
Shelf Life: 730 Days From Date of Manufacture
Specific Gravity: 1.3
Storage Conditions: Protect from Sunlight. Do Not Expose to Temperatures Exceeding 50 °C [122 °F]. Store in Well-ventilated Place. Store Locked Up. Store Between -5 and 40 °C [23 and 104 °F] in Dry Area Away from Sunlight. Temperatures below or above These Outer Limits
Viscosity Measurement: 61 cP
VOCs Content: 34 %
Width: 2.0 in.
Application Method: Spray
Weight: 1
Country Of Origin: CA
