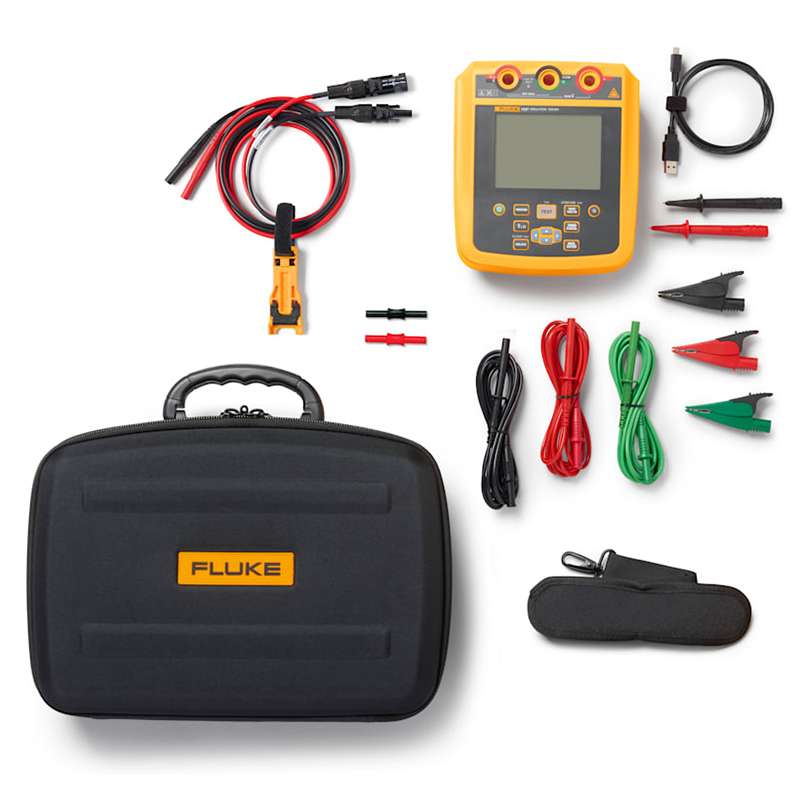

Solar Test Kit includes 2500V Insulation Tester, TLPV1 Test Lead Set

Fluke FLK-1537-TLPV1 Solar Kit: Insulation Tester And Test Lead Set

The Fluke Kit for Verifying Insulation Integrity In PV Array Wiring, Inverters, And Junction Boxes:

The FLK‑1537‑TLPV1 Solar Kit provides a complete solution for verifying insulation integrity in PV array wiring, inverters, and junction boxes. It pairs the Fluke 1537 Insulation Resistance Tester with the TLPV1 MC4 test leads to support safe, accurate diagnostics in solar installations. The 1537 performs insulation resistance tests up to 1000 V DC, stores and recalls measurements for efficient field documentation, and is part of the 153X series designed to quickly assess the condition of cables, motor and transformer windings, and other electrical equipment. Built for frontline troubleshooting, the 1537 offers selectable test voltages from 250 V to 2500 V, resistance measurements up to 500 GΩ, an intuitive interface, a short‑circuit current capability of 5 mA, and a CAT IV 600 V rating—all in a portable, lightweight instrument that delivers fast, stable results in both industrial and solar environments. The included TLPV1 MC4‑to‑4 mm test lead set ensures safe, dependable connections to PV modules, making it ideal for routine measurements and troubleshooting on Staubli MC4‑equipped solar panels.

1537 Insulation Tester Features:

• Tailor tests with user-selectable voltages of 250 V, 500 V, 1000 V, and 2500 V
• Reach up to 500 Gigohm in insulation resistance measurement
• Execute up to 1,300 measurements at 2500 V or 6,500 measurements at 250 V
• Benefit from a CAT IV 600 V rating and a built-in voltage alarm function

TLPV1 Features:

• Use: Ensures safe PV measurements, compatible with 4mm sheathed banana plugs.
• Nickel Plated Contacts: Provides robust and reliable connections with minimal resistance and corrosion, ensuring long-term performance and accuracy.
• Lead Specifications: Includes 150 cm (59 inches) long test leads with color-coded black (female) and red (male) MC4 connectors for quick identification and usability.
• Official Staubli MC4 Connectors: Ensures high-quality and dependable connections for accurate measurement results.

What's in the Box

• 1537 Insulation Tester
• TLPV1 test lead set, black/red
