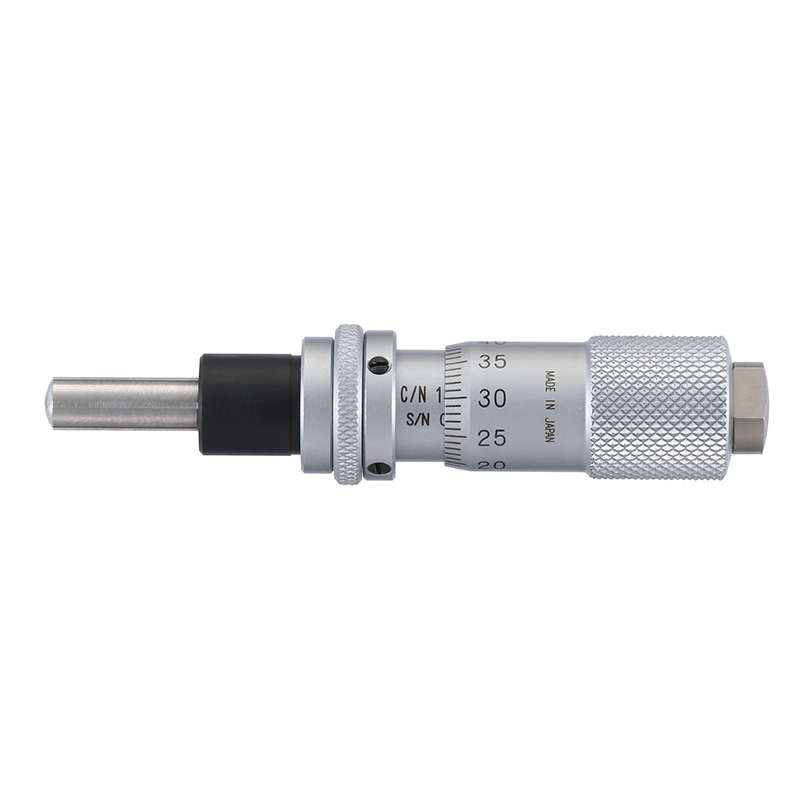

Micrometer Head, Metric, 0-13mm, 0.01mm, Spherical Plain, 9.5mm Dia, 148 Series

The Mitutoyo 148-803-10 standard micrometer head comes in a smaller size to fit tighter spaces while providing accurate placement and measurements. The spindle is constructed of hardened tool steel, and the measuring face is precision lapped for better accuracy.

Features:

• Spindle range is 13mm / .5”
• Mounting stem diameter is 9.5mm / .375”
• Spindle diameter is 5mm / .197”
• Reverse reading is available on some models
• Spindle faces have lapped surfaces and are constructed of ultra-hard SKS3 steel and are available in spherical or flat types
• Thimble is hard-chrome plated with laser-etched scales for easy-to-read measurements
• Spindle screw threads are precision machined for incredibly precise movements
