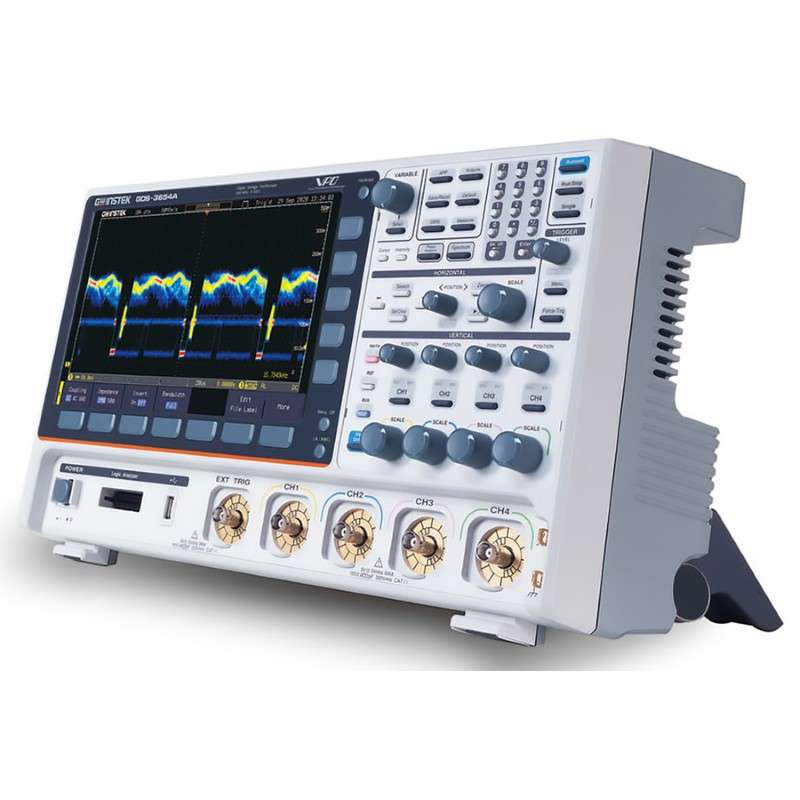

650MHz, 5G S/s, 4 channel with LAN/USB Oscilloscope
Hisco #:GDS-3654A-50297
MFG #:GDS-3654A
Item must be ordered in multiples of 1
| Quantity | Price | Save |
|---|---|---|
| 1 | 7590.00 | |
| 3 | 7332.56 | Save |
650MHz, 5G S/s, 4 channel with LAN/USB Oscilloscope
- 4 analog channels / 650 MHz bandwidth
- 16 digital channels (requires option GDS-DS3A-16LA)
- Dual channel spectrum analyzer (DC-2.5 GHz) with spectrogram
- Dual cannel 25 MHz arbitrary waveform generator
- 13 power analysis measurements (requires option GDS-DS3A-PWR)
- Real time sampling rate: 5 GSa/s (1ch); 2.5 GSa/s (2 ch)
- 200 Mpts memory depth per channel
- 200,000 wfm/s waveform update rate
- 38 automatic measurements
- Standard interfaces: USB, LAN, RS-232; optional GPIB is factory installed
The Instek GDS-3000A is available in two bandwidths (350 and 650 MHz), with two or four analog channels and an option for 16 channel logic analysis. The GDS-3000A features a per-channel memory length of up to 200 Mpts, as well as sampling rates up to 5 GSa/s.
Each of these models also includes a dual channel, 25 MHz arbitrary waveform generator, and a dual channel spectrum analyzer (DC-2.5 GHz) with spectrogram.
| GDS-3000A Series Oscilloscope | ||||
|---|---|---|---|---|
| GDS-3352A | GDS-3354A | GDS-3652A | GDS-3654A | |
| Bandwidth | 350 MHz | 650 MHz | ||
| Channels | Two | Four | Two | Four |
| Record Length | 200 Mpts/ch | |||
| Sampling Rate | Up to 5 GS/s | |||
| Mixed Signal Analysis | Via Option | |||
In The Box
- Oscilloscope
- User manual
- Power cord
- GTP-501R 10:1 passive probe (1 per channel)
- Note: logic probe sold separately
Product Description
650MHz, 5G S/s, 4 channel with LAN/USB Oscilloscope
- 4 analog channels / 650 MHz bandwidth
- 16 digital channels (requires option GDS-DS3A-16LA)
- Dual channel spectrum analyzer (DC-2.5 GHz) with spectrogram
- Dual cannel 25 MHz arbitrary waveform generator
- 13 power analysis measurements (requires option GDS-DS3A-PWR)
- Real time sampling rate: 5 GSa/s (1ch); 2.5 GSa/s (2 ch)
- 200 Mpts memory depth per channel
- 200,000 wfm/s waveform update rate
- 38 automatic measurements
- Standard interfaces: USB, LAN, RS-232; optional GPIB is factory installed
The Instek GDS-3000A is available in two bandwidths (350 and 650 MHz), with two or four analog channels and an option for 16 channel logic analysis. The GDS-3000A features a per-channel memory length of up to 200 Mpts, as well as sampling rates up to 5 GSa/s.
Each of these models also includes a dual channel, 25 MHz arbitrary waveform generator, and a dual channel spectrum analyzer (DC-2.5 GHz) with spectrogram.
| GDS-3000A Series Oscilloscope | ||||
|---|---|---|---|---|
| GDS-3352A | GDS-3354A | GDS-3652A | GDS-3654A | |
| Bandwidth | 350 MHz | 650 MHz | ||
| Channels | Two | Four | Two | Four |
| Record Length | 200 Mpts/ch | |||
| Sampling Rate | Up to 5 GS/s | |||
| Mixed Signal Analysis | Via Option | |||
In The Box
- Oscilloscope
- User manual
- Power cord
- GTP-501R 10:1 passive probe (1 per channel)
- Note: logic probe sold separately
