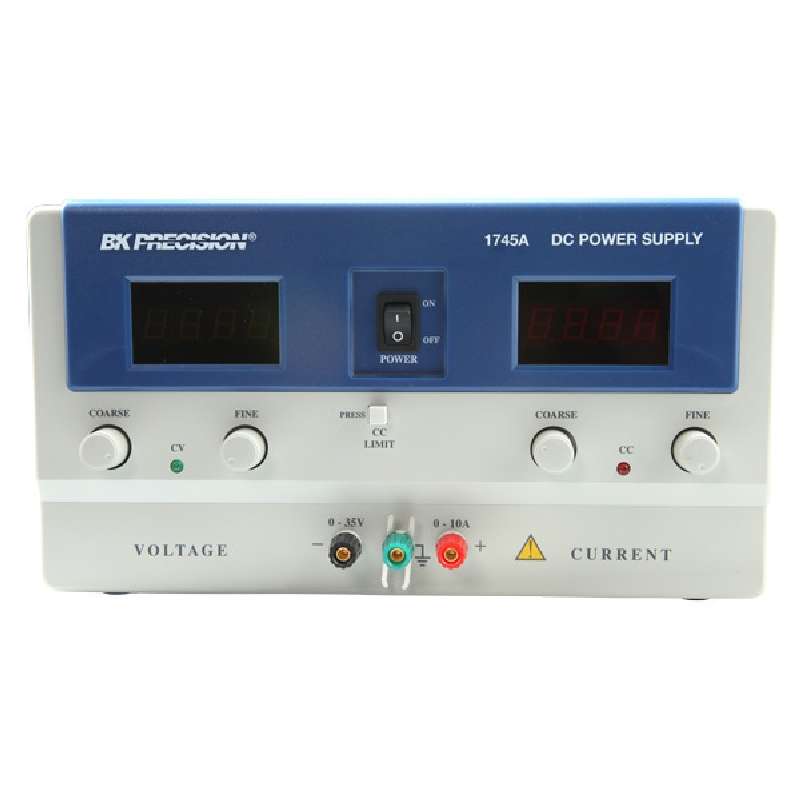

Model 1745A Digital DC Power Supply, 0-35V, 0-10A
Hisco #:1745A-65699
MFG #:1745A
Our Price: $1,035.84 Each
Available to Order - 0 on Hand
Manufacturer Estimated Lead Time When Not In Stock: 5 days
Minimum Order QTY: 1 Each
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
| Quantity | Price | Save |
|---|---|---|
| 1 | 1035.84 | |
| 3 | 993.33 | Save |
The BK Precision 1745A is a Series 1700 dc power supply with a power consumption of 560.
The BK Precision 1745A Features:- Largest selection of voltage and current ratings ever offered
- Connect two supplies in parallel to double the current output
- Connect two supplies in series to double the voltage output
- Series: 1700
- Product Type: DC Power Supply
- Power Supply Type: Digital
- Input Voltage Rating: 120/220V ac
- Output Voltage Rating: 0 to 35V dc
- Output Current Rating: 0 to 10A
- Power Consumption: 560W
- Ripple & Noise: 1 mVrms ≤3 mArms
- Maximum Load Regulation: <0.04 % + 2 mV
- Maximum Line Regulation: <0.2 % + 2 mV
- Mounting Type: Surface Mount
- Protection Features: Current Limiting Protection, Reverse Polarity Protection, Over Voltage Protection, Short Circuit Protection
- Dimensions: 5.7 x 10.5 x 15in
- Includes: Instruction Manual, Spare Fuse, Power Cord
- Height: 15in
- Length: 5.7in
- Width: 10.5in
- Minimum Operating Temperature: +32°F
- Maximum Operating Temperature: +104°F
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
The BK Precision 1745A is a Series 1700 dc power supply with a power consumption of 560.
The BK Precision 1745A Features:- Largest selection of voltage and current ratings ever offered
- Connect two supplies in parallel to double the current output
- Connect two supplies in series to double the voltage output
- Series: 1700
- Product Type: DC Power Supply
- Power Supply Type: Digital
- Input Voltage Rating: 120/220V ac
- Output Voltage Rating: 0 to 35V dc
- Output Current Rating: 0 to 10A
- Power Consumption: 560W
- Ripple & Noise: 1 mVrms ≤3 mArms
- Maximum Load Regulation: <0.04 % + 2 mV
- Maximum Line Regulation: <0.2 % + 2 mV
- Mounting Type: Surface Mount
- Protection Features: Current Limiting Protection, Reverse Polarity Protection, Over Voltage Protection, Short Circuit Protection
- Dimensions: 5.7 x 10.5 x 15in
- Includes: Instruction Manual, Spare Fuse, Power Cord
- Height: 15in
- Length: 5.7in
- Width: 10.5in
- Minimum Operating Temperature: +32°F
- Maximum Operating Temperature: +104°F
Technical Information
Brand: BK Precision
Weight: 31
Country Of Origin: TW
Harmonized Code: 8504.40.7012
UPC Code: 817050174519
