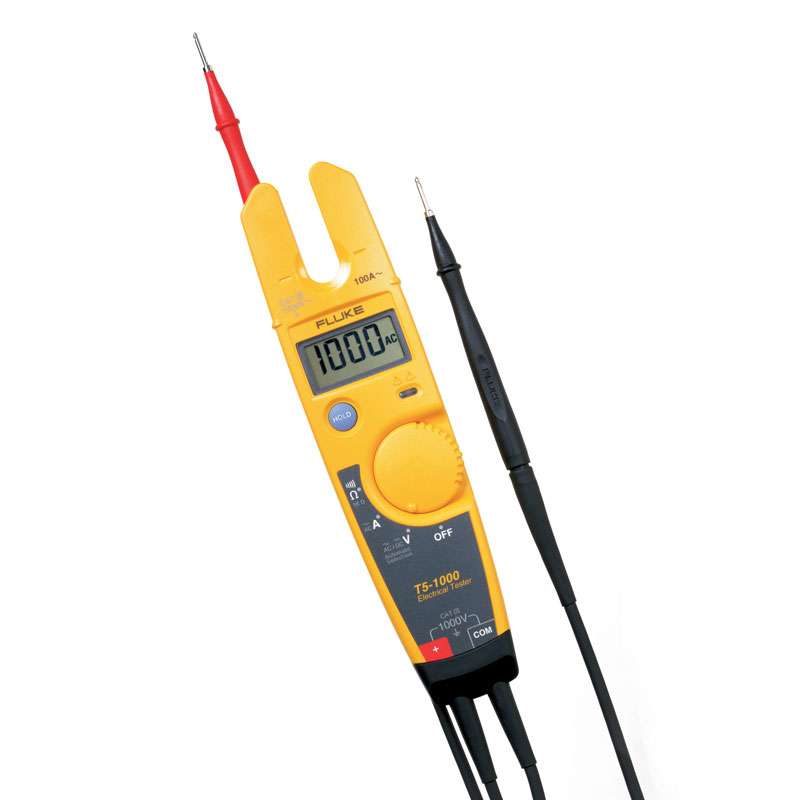

Electrical Tester with OpenJaw®' Current with Detachable SlimReach® Probe Tips, 1000V

T5-1000-USA-19816 MFG #: T5-1000 USA
$169.99 / EA
Available to Order - 0 on Hand
Electrical Tester with OpenJaw®' Current with Detachable SlimReach® Probe Tips, 1000V
  • Brand Name: Fluke
  • Series: T5
  • Product Type: Electrical Tester
  • Battery Type: AA Alkaline Battery
  • Power Source: Battery
  • Safety Category: CAT III 1000 V; CAT IV 600 V
  • Dimensions: 203 x 30.5 x 51mm
  • Safety Category Level: CAT III; CAT IV
  • Height: 1.0 in.
  • Maximum Operating Temperature: +122°F
  • Length: 10.0 in., 203mm
  • Safety Category Voltage: 1000; 600V
  • Model Number: T5-1000
  • Width: 3.0 in.
  • Minimum Operating Temperature: +14°F
  • AC Current Measurement Resolution: 0.1A
  • AC Voltage Measurement Resolution: 1V
  • Best AC Current Accuracy: ±3%
  • Best AC Voltage Accuracy: ±1.5%
  • Best DC Voltage Accuracy: ±1%
  • Best Resistance Measurement Accuracy: ±1%
  • Clamp Meter Type: Current and Voltage Tester
  • DC Voltage Measurement Resolution: 1V
  • Functions Measured: AC Voltage; DC Voltage; AC Current; Resistance
  • Jaw Capacity: 0.5in
  • Maximum AC Current Measurement: 100A
  • Maximum AC Voltage Measurement: 1000V
  • Maximum DC Voltage Measurement: 1000V

The Fluke T5-1000 USA is a Series T5 electrical tester with a maximum ac current measurement of 100.

The Fluke T5-1000 USA Features:
  • Automatically measures volts ac and volts dc with precise digital resolution
  • Displays resistance to 1Ω
  • Easy and accurate OpenJaw™ current measurement
  • Continuity beeper
  • Compact design with neat probe storage
  • Auto off mode to conserve battery life
The Fluke T5-1000 USA Specifications:
  • Series: T5
  • Product Type: Electrical Tester
  • Clamp Meter Type: Current and Voltage Tester
  • Functions Measured: AC Voltage DC Voltage AC Current Resistance
  • Power Source: Battery
  • Maximum AC Current Measurement: 100A
  • Maximum AC Voltage Measurement: 1000V
  • Maximum DC Voltage Measurement: 1000V
  • Maximum Resistance Measurement: 1000Ω
  • Best AC Current Accuracy: ±3%
  • Best AC Voltage Accuracy: ±1.5%
  • Best DC Voltage Accuracy: ±1%
  • Best Resistance Measurement Accuracy: ±1%
  • AC Current Measurement Resolution: 0.1A
  • AC Voltage Measurement Resolution: 1V
  • DC Voltage Measurement Resolution: 1V
  • Resistance Measurement Resolution: 1Ω
  • True RMS (Yes/No): Yes
  • Jaw Capacity: 0.5in
  • Battery Type: AA Alkaline Battery
  • Safety Category: CAT III 1000 V CAT IV 600 V
  • Dimensions: 203 x 30.5 x 51mm
  • Safety Category Level: CAT III CAT IV
  • Width: 30.5mm
  • Minimum Operating Temperature: +14°F
  • Height: 51mm
  • Length: 203mm
  • Model Number: T5-1000
  • Maximum Operating Temperature: +122°F
  • Safety Category Voltage: 1000 600V
