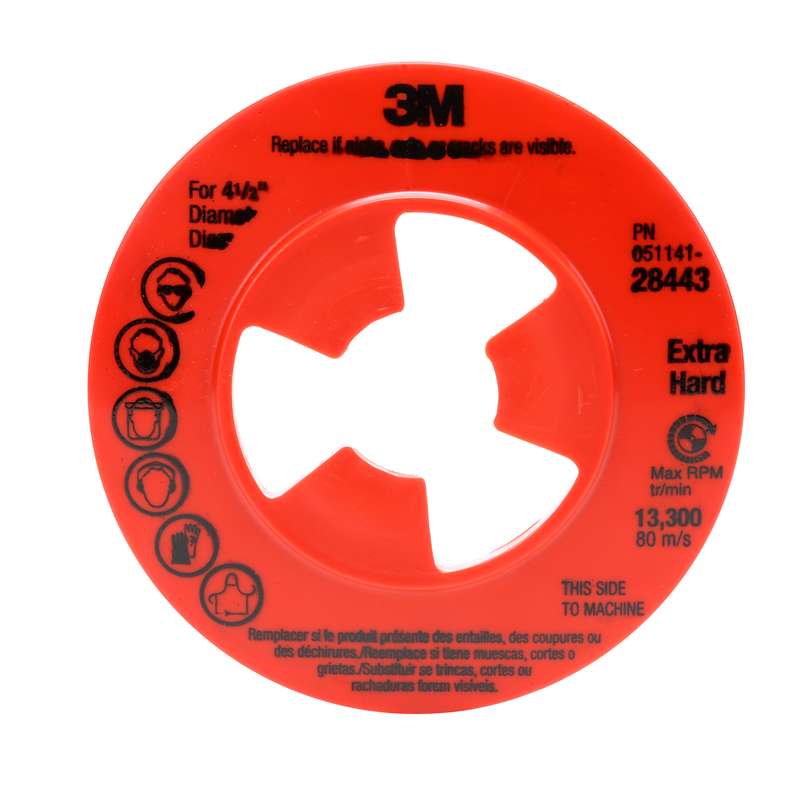

3M™ Disc Pad Face Plate Ribbed 28443, 4-1/2 in Extra Hard Red, 10 ea/Case

Hisco #:00051141284439-31196

MFG #:28443

Our Price: $17.48 PP
List Price: 21.84 PP
Manufacturer Lead Time When Not In Stock21 days
Minimum Order QTY: 10
Item must be ordered in multiples of 10
QuantityPriceSave
10$17.48Save 1%
30$17.30Save 2%

3M™ Disc Pad Face Plate backs a same size fiber disc (sold separately) to provide firm support and the force required for grinding applications. It is used in conjunction with a disc pad hub (sold separately), which attaches to the power tool, and held into place along with the appropriate disc using a retainer nut (sold separately).

This assembly allows 3M™ Disc Pad Face Plate to be easily changed without removing the disc pad hub, allowing the operator to use a single tool for multiple applications from heavy grinding to finishing a workpiece.

Some face plates have ribbing on the bottom face. Ribbed face plates provide additional force when needed for optimal fracturing of the abrasive mineral. By reducing the area of contact, or pressure per square foot (PSI), ribbed face plates increase the grinding pressure of the abrasive with the same amount of operator effort, and extend disc life when dulling is a problem.

Choose a plate with the level of firmness needed for the application—a lighter density face plate for lighter weight grinding applications, and a harder density face plate for more heavyweight grinding applications. Using the correct face plate for the application ensures that the abrasive mineral will fracture as it should, maximizing the life of the abrasive. The plate comes in one of four different colors that indicate the density so the correct plate can be easily identified in the workroom: red = extra hard (for heavy grinding with the coarsest grades), black = hard (for heavy metal removal, large welds, etc.), gray = medium (for general purpose grinding and finishing), and white = soft (for finishing operations on flat or contoured surfaces).

3M 28443 Features:
  • Designed for use with a 3M™ Disc Pad Hub
  • Various flexibilities support grinding applications ranging from lightweight to heavy-duty
  • Plate accommodates a fiber disc of equal diameter
  • Plate color indicates disc density for easy identification in the workroom
3M 28443 Specifications:
  • Color: Red
  • Maximum RPM: 13300 none
  • Package Quantity: 10 PLAT
  • Part Number: 28443
  • Product Type: Back-up Pad
  • Type: Retainer Nut
  • Width: 6.25 in

Product Description

3M™ Disc Pad Face Plate backs a same size fiber disc (sold separately) to provide firm support and the force required for grinding applications. It is used in conjunction with a disc pad hub (sold separately), which attaches to the power tool, and held into place along with the appropriate disc using a retainer nut (sold separately).

This assembly allows 3M™ Disc Pad Face Plate to be easily changed without removing the disc pad hub, allowing the operator to use a single tool for multiple applications from heavy grinding to finishing a workpiece.

Some face plates have ribbing on the bottom face. Ribbed face plates provide additional force when needed for optimal fracturing of the abrasive mineral. By reducing the area of contact, or pressure per square foot (PSI), ribbed face plates increase the grinding pressure of the abrasive with the same amount of operator effort, and extend disc life when dulling is a problem.

Choose a plate with the level of firmness needed for the application—a lighter density face plate for lighter weight grinding applications, and a harder density face plate for more heavyweight grinding applications. Using the correct face plate for the application ensures that the abrasive mineral will fracture as it should, maximizing the life of the abrasive. The plate comes in one of four different colors that indicate the density so the correct plate can be easily identified in the workroom: red = extra hard (for heavy grinding with the coarsest grades), black = hard (for heavy metal removal, large welds, etc.), gray = medium (for general purpose grinding and finishing), and white = soft (for finishing operations on flat or contoured surfaces).

3M 28443 Features:
  • Designed for use with a 3M™ Disc Pad Hub
  • Various flexibilities support grinding applications ranging from lightweight to heavy-duty
  • Plate accommodates a fiber disc of equal diameter
  • Plate color indicates disc density for easy identification in the workroom
3M 28443 Specifications:
  • Color: Red
  • Maximum RPM: 13300 none
  • Package Quantity: 10 PLAT
  • Part Number: 28443
  • Product Type: Back-up Pad
  • Type: Retainer Nut
  • Width: 6.25 in

Technical Information

Brand3M
AvailabilityIn Stock
Series28443
Product TypeBack-up Pad
ApplicationsMetalworking, Grinding
ColorRed
For Use WithFiber Discs, 3M™ Right Angle Disc System
Width6.25 in
Primary ColorRed
Diameter4-1/2in
Maximum Speed13300rpm
Package Quantity10 PLAT
Density GradeExtra Hard
Our Price: $17.48 PP
List Price: 21.84 PP

Minimum Order QTY: 10
Item must be ordered in multiples of 10
