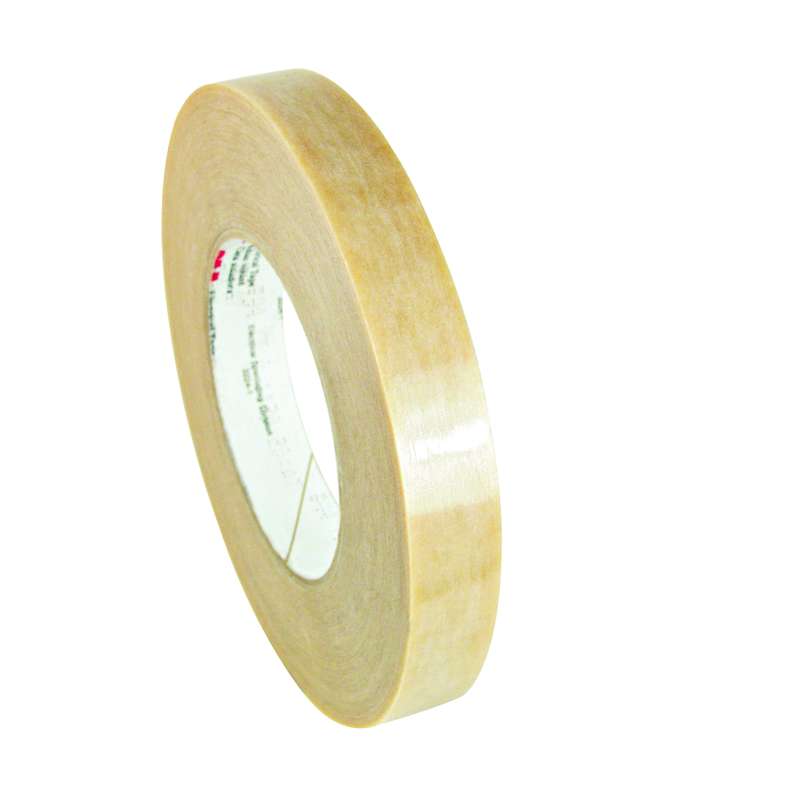

3M™ Filament-Reinforced Electrical Tape 46, 1/2 in x 60 yd

05113852805-31196 MFG #: 00051138528058
$11.84 / RL
Available to Order - 0 on Hand
  • Brand Name: 3M
  • Series: 46
  • Product Type: Electrical Tape
  • Backing Material: Polyester Film/Glass Filament
  • Adhesive Material: Thermosetting Rubber
  • Material Category: Plastic
  • Color: Translucent
  • Primary Color: Clear
  • Width: 0.5in
  • Length: 60yd
  • Thickness: 7mil
  • Adhesion Strength: 50oz/in
  • Tensile Strength: 275lb/in
  • Elongation at Break: 5%
  • Resistance Properties: Edge Tear Resistant; Insulation Resistant
  • Applications: Lead Anchoring, Banding of Coils
  • Maximum Operating Temperature: +266°F
  • Minimum Operating Temperature: +32°F
  • Package Quantity: 72CA
  • Adhesive Type: Acrylic

3M™ Tape 46 is an electrical tape with rubber adhesive. This tape is ideal for anchoring lead wires to banding coils and for end turn taping. This tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).

3M 00051138528058 Features:
  • 1/2 in x 60 yd
  • Tough, durable filament tape with thermosetting rubber resin adhesive
  • For applications needing both the dielectric strength of polyester film and the high mechanical strength of glass fibers
  • Low stretch, high tensile and edge-tear resistance
  • Excellent for anchoring lead wires to banding coils and end-turn taping
  • 7 mil thickness
3M 00051138528058 Specifications:
  • Length: 60
  • Width: 0.5
  • Product Type: Filament Reinforced Tape
  • Backing Material: Filament Reinforced
  • Color: Translucent
  • Part Number: 46-TRANSLUCENT-1/2"X60YD
  • Thickness: 7
Pack: Roll
