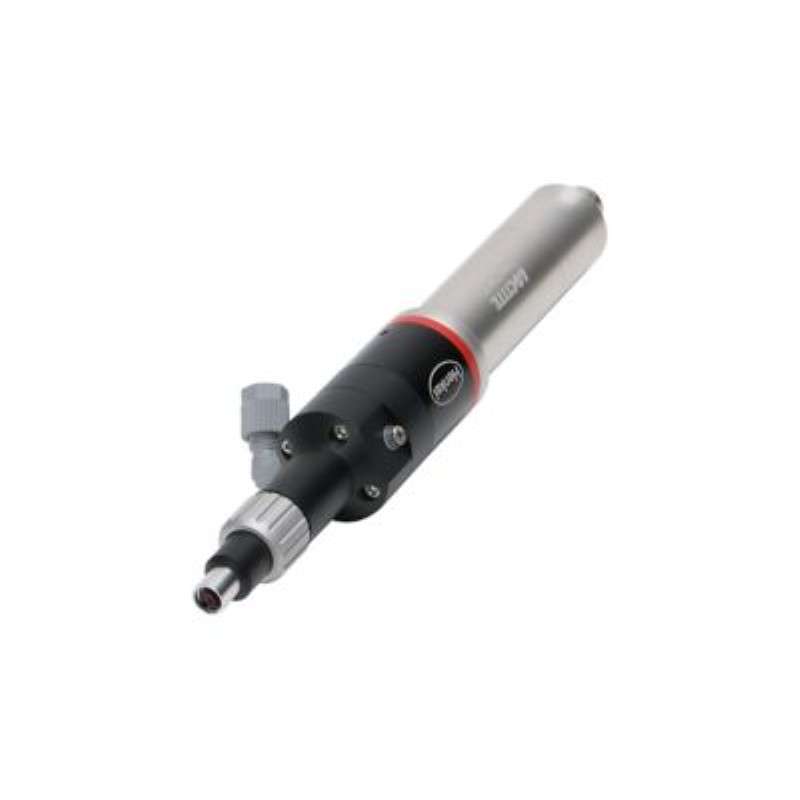

LOCTITE® Compact Rotor Pump Dispenser 4.0
Hisco #:1196160-30769
MFG #:1196160
Item must be ordered in multiples of 1
The Loctite 1196160
The LOCTITE® Compact Rotor Pump Dispenser 4.0 applies adhesives - like anaerobics, acrylates and UV acrylates - with incredible accuracy and repeatability. Ideal for small to medium drop and bead dispensing, delivering a flow rate of up to 6 ml/min. This volumetric dispenser is a rotating displacement system and consists of a rotor and statory.
Loctite 1196160 Features:- Specifically designed for LOCTITE adhesives and integrates easily with LOCTITE equipment
- Perfect for dispensing low- to high-viscosity adhesives
- Reversible direction of flow allows exact stoppage and prevents dripping
- Easy integration with LOCTITE® reservoirs and controllers
- Volumetric device, flow rate proportional to speed, electronically controlled
- Included in the box: (1) Compact Rotor Pump Dispenser 4.0 with a stator and drive unit; (1) mounting tool; (1) feed line, OD 6mm, length 2 m; (1) operating manual
- Applications: Dispensing adhesives
- Dispense patterns: Beads,Drops,Potting
- Key characteristics: Vacuum suck-back
- Operating type: Volumetric
- Used to dispense: Acrylics,Anaerobics,Light cure acrylics
- Viscosity: 0.0 mPa·s - 100000.0 mPa·s
Product Description
The Loctite 1196160
The LOCTITE® Compact Rotor Pump Dispenser 4.0 applies adhesives - like anaerobics, acrylates and UV acrylates - with incredible accuracy and repeatability. Ideal for small to medium drop and bead dispensing, delivering a flow rate of up to 6 ml/min. This volumetric dispenser is a rotating displacement system and consists of a rotor and statory.
Loctite 1196160 Features:- Specifically designed for LOCTITE adhesives and integrates easily with LOCTITE equipment
- Perfect for dispensing low- to high-viscosity adhesives
- Reversible direction of flow allows exact stoppage and prevents dripping
- Easy integration with LOCTITE® reservoirs and controllers
- Volumetric device, flow rate proportional to speed, electronically controlled
- Included in the box: (1) Compact Rotor Pump Dispenser 4.0 with a stator and drive unit; (1) mounting tool; (1) feed line, OD 6mm, length 2 m; (1) operating manual
- Applications: Dispensing adhesives
- Dispense patterns: Beads,Drops,Potting
- Key characteristics: Vacuum suck-back
- Operating type: Volumetric
- Used to dispense: Acrylics,Anaerobics,Light cure acrylics
- Viscosity: 0.0 mPa·s - 100000.0 mPa·s
Technical Information
Item must be ordered in multiples of 1
