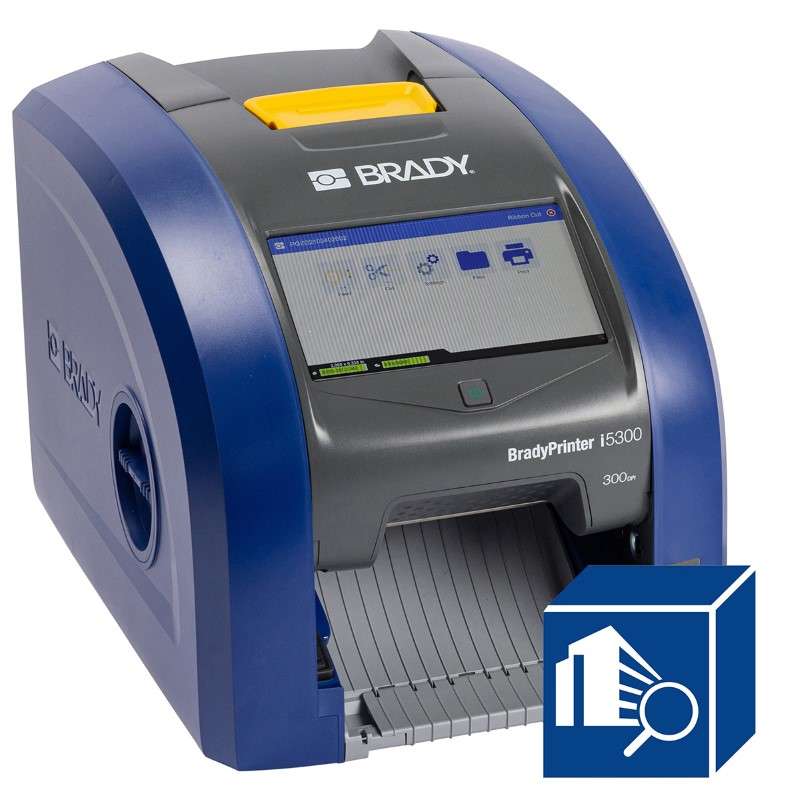

BradyPrinter i5300, 300 dpi, with Wi-Fi and and Safety & Facility ID Software Suite

The Brady 151292 is a fast and efficient label printer which offers precision printing for high-mix / high-volume labeling. Printer and software allow for quick label set up and no-waste material changeovers.

• 300 dpi; prints small fonts with precision
• Requires no calibration and no heat and speed setting adjustments
• 20-second material changeovers, 0.20" – 4" label widths
• Pauses, resumes and stores print jobs on printer in an adjustable queue with overwrite protection
• 7" color touchscreen and built-in auto cutter
• Solid construction with an all-metal frame
• 1-click label part recognition and setup with Brady Workstation Safety and Facility ID Software Suite
• Intuitive and easy to operate

• Product Type: Printer
• UPC: 754473637620
• Dimensions: 11 in x 11.2 in x 15.8 in
• Height: 11 in
• Width: 11.2 in
• Depth: 15.8 in
• Display Size: 7 in
• Weight: 33 lb
• Color: Blue, Gray
• Built-in Label Wizards: No
• Connectivity Options: Cabled, Ethernet, USB 2.0, USB Host
• Cut Options: Cut at the end of print jobs, Cut between labels, Full Cut
• Cutter Type: Auto Cutter
• Display Type: Color LCD Touch Screen
• Est. Media Changeover Time: 15 seconds for media roll, 5 seconds for ribbon
• Keyboard Type: None
• Memory: 512 MB RAM, 195 MB IFFS Flash
• Stand Alone Printing: PC Connected
• Plug type: US
• Power Supply Voltage: 100 - 240 V @ 50 - 60 Hz
• Auto Shutt-Off / Power Conserve: Yes
• Print Preview Feature: Yes
• Units: Inches, mm, Points
• User Interface Type: PC, Touch Screen
• Battery Type: Internal (non-removable)
• Operating System: Windows 10, Windows 7, Windows 8, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
• Automatic Label Set Up: Yes
• Barcode Symbologies (2D): Aztec, Data Matrix, PDF417, QR code
• Barcode Symbologies (Linear): Codabar, Code 128A, Code 128B, Code 128C, Code 39, Code 93, EAN-13, EAN-8, HIBC, Interleaved 2 of 5, JAN-8, MSI, Plessey, UPC-A
• Calibration Required: No
• Color Printing: Single Color
• Font Sizes: 4 - 250 pt
• Font Styles: Arial, Courier New, Tahoma, Times New Roman, Trechuchet MS, TrueType fonts storable to printer, Verdana
• Maximum Labels per Day: 5000
• Maximum Print Speed: 10 in/s
• Minimum Label Length: 0.2 in
• Print Resolution: 300 dpi
• Minimum Liner Width: 0.71 in
• Print Technology: Direct Thermal, Thermal Transfer
• Media Sensor Adjustment: Automatic
• On Screen Errors: Data Reception, Error Messaging, Ethernet Status, Ribbon and label part number recognition, Supply Remaining, WiFi
• Compatible Media: B30-, B30C-, B30EP-, B33-, B33C-, B33D-, B33FP-, B33FT-, B33R-
• Continuous & Die-Cut Materials Supported: Continuous, Die-Cut
• Custom Media Parts Available: Yes
• Custom Labels Available: Yes
• Maximum Label/Tape Width: 4.25 in
• Maximum Print Width: 4.015 in
• Maximum Liner Width: 4.25 in
• Software Compatibility: Brady Workstation, Windows based driver for 3rd party software use
• Warranty: 5 years
• Includes: (1) Brady Workstation Safety & Facility ID Suite (BWS-SFID-NA-EM), (1) BradyPrinter i5300 Industrial Label Printer, (1) Cleaning Kit, (1) Jump drive with How To Videos and 3rd Party Win Driver, (1) Power Cable, (1) QuickStart Guide, (1) Stylus, (1) USB Cable
