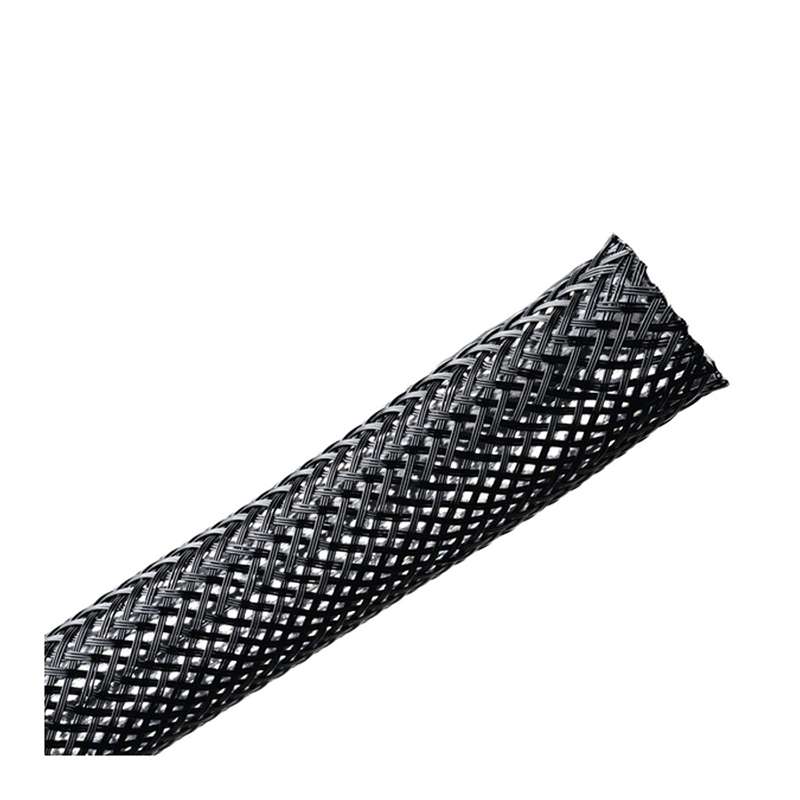

Braided Sleeving, .5" PET Expandable, Black 100ft/RL
Hisco #:170-03001-22951
MFG #:170-03001
Item must be ordered in multiples of 1
The HellermannTyton 170-03001 is designed to adjust and expand to irregular shapes, this general purpose sleeving is lightweight and offers a high tensile strength while still maintaining flexibility. This sleeving is an excellent choice for protecting wire and cable bundles from abrasion, chafing and heat degradation. Commonly used in electrial and industrial wire harnessing application where economy and durability are required for the protection of wires, cables, tubing, bundles and pneumatic hoses.
HellermannTyton 170-03001 Features:- Weave construction adjusts to twisting and flexing without creating wrinkles or bends.
- Durable construction offers excellent abrasion and cut-through resistance as well as inertness to most chemicals and fungus.
- Color options available to provide easy visual and safety identification of critical wiring components.
- Expands to 150% of nominal diameter for fast, easy installation.
- Color: Black
- Diameter: 0.5"
- Length: 100 ft.
- Material: Polyester (PET)
- Style: Expandable
- Type: General Purpose Braided Sleeving
- Operating Temperature Range: -94°F to +257°F (-70°C to +125°C)
- Bundle Diameter: 0.25 " Min | 0.75 " Max
- Flammability Rating: UL 94 V-0;FMVSS 302;FAR 25
- Nominal Diameter: 0.5"
Product Description
The HellermannTyton 170-03001 is designed to adjust and expand to irregular shapes, this general purpose sleeving is lightweight and offers a high tensile strength while still maintaining flexibility. This sleeving is an excellent choice for protecting wire and cable bundles from abrasion, chafing and heat degradation. Commonly used in electrial and industrial wire harnessing application where economy and durability are required for the protection of wires, cables, tubing, bundles and pneumatic hoses.
HellermannTyton 170-03001 Features:- Weave construction adjusts to twisting and flexing without creating wrinkles or bends.
- Durable construction offers excellent abrasion and cut-through resistance as well as inertness to most chemicals and fungus.
- Color options available to provide easy visual and safety identification of critical wiring components.
- Expands to 150% of nominal diameter for fast, easy installation.
- Color: Black
- Diameter: 0.5"
- Length: 100 ft.
- Material: Polyester (PET)
- Style: Expandable
- Type: General Purpose Braided Sleeving
- Operating Temperature Range: -94°F to +257°F (-70°C to +125°C)
- Bundle Diameter: 0.25 " Min | 0.75 " Max
- Flammability Rating: UL 94 V-0;FMVSS 302;FAR 25
- Nominal Diameter: 0.5"
