Hysol UF3810(-20DC)30cc
Hisco #:1858811-34899
MFG #:1858811
Our Price: $73.37 EA
List Price: Available to Order - 0 on Hand
Manufacturer Estimated Lead Time When Not In Stock: 64 days
Minimum Order QTY: 10
Item must be ordered in multiples of 10
Item must be ordered in multiples of 10
| Quantity | Price | Save |
|---|---|---|
| 30 | 72.25 | Save |
This item is hazardous and may be subject to an additional handling fee.

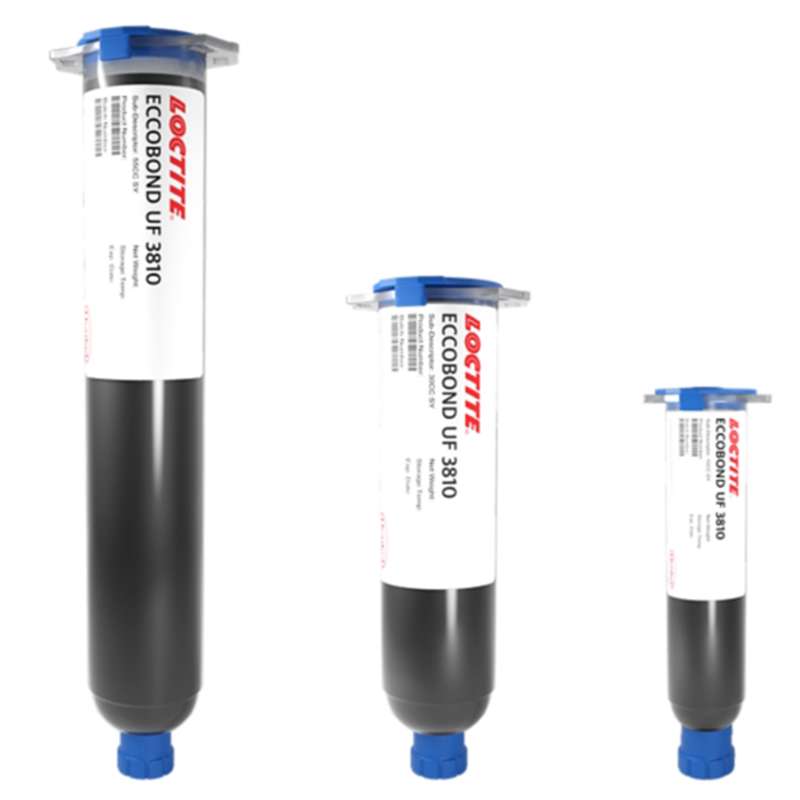

The Loctite 1858811 is a Series UF 3810 epoxy adhesive .
The Loctite 1858811 Features:- One component
- Fast cure at moderate temperatures
- High Tg
- Halogen free
- Compatible with most Pb-free solders
- Stable electrical performance in Temperature Humidity Bias
- Reworkable
- Room temperature flow capability
- Series: UF 3810
- Product Type: Epoxy Adhesive
- Color: Black
- Primary Color: Black
- Physical Form: Liquid
- Cure Time: ≥8min
- Viscosity Measurement: 394mPa/s
- Shelf Life: 365days
- Chemical Composition: Epoxy Resin, Acrylic Resin, Acrylated Epoxy, Epoxy Resin, 2,3-Epoxypropyl Methacrylate, Polymer Resin, Imidazole Derivatives, High Boiling Methacrylate, Resin, Bisphenol A Diglycidyl Ether, Epoxy Resin, Carbon Black, Resin Modifier, Hydroquinone
- Specific Gravity: 1.13
- Cure Type: Heat Cure
- Container Capacity: 30cc
- Applications: Underfill, Chip Scale Packages and BGA
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
This item is hazardous and may be subject to an additional handling fee.
The Loctite 1858811 is a Series UF 3810 epoxy adhesive .
The Loctite 1858811 Features:- One component
- Fast cure at moderate temperatures
- High Tg
- Halogen free
- Compatible with most Pb-free solders
- Stable electrical performance in Temperature Humidity Bias
- Reworkable
- Room temperature flow capability
- Series: UF 3810
- Product Type: Epoxy Adhesive
- Color: Black
- Primary Color: Black
- Physical Form: Liquid
- Cure Time: ≥8min
- Viscosity Measurement: 394mPa/s
- Shelf Life: 365days
- Chemical Composition: Epoxy Resin, Acrylic Resin, Acrylated Epoxy, Epoxy Resin, 2,3-Epoxypropyl Methacrylate, Polymer Resin, Imidazole Derivatives, High Boiling Methacrylate, Resin, Bisphenol A Diglycidyl Ether, Epoxy Resin, Carbon Black, Resin Modifier, Hydroquinone
- Specific Gravity: 1.13
- Cure Type: Heat Cure
- Container Capacity: 30cc
- Applications: Underfill, Chip Scale Packages and BGA
Technical Information
Brand: Loctite
Weight: 0.074
Country Of Origin: US
Harmonized Code: 3506.10.5000
