Industrial True-RMS Multimeter with Temperature Probe

Hisco #:2074974-19816

MFG #:FLUKE-87-5

This item cannot be exported outside of the United States.
Made in the USA
$
Manufacturer Lead Time When Not In Stock50 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1

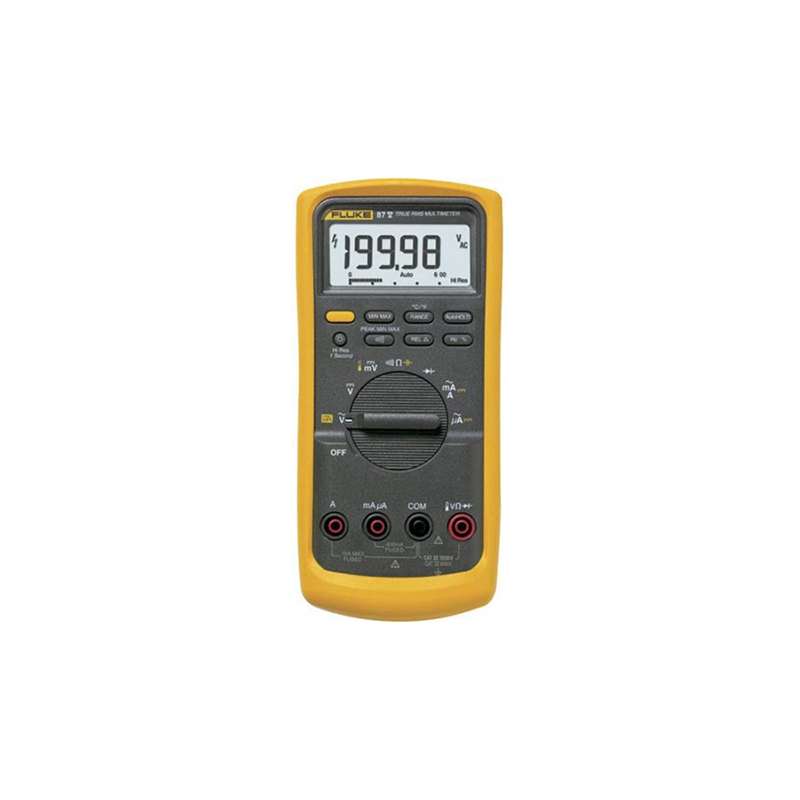

The Fluke FLUKE-87-5 is an industrial True-RMS multimeter.

Fluke FLUKE-87-5 Features:
  • Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment
  • Built-in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument
  • Optional magnetic hanger for easy setup and viewing while freeing your hands for other tasks
  • Large display digits and 2-level bright white backlight for increased visibility
  • Withstands hazardous 8,000 volt spikes caused by load switching and faults on industrial circuits and complies with second edition ANSI and IEC electrical safety standards
  • Improved sleep mode for long battery life
  • Relative mode to remove test lead resistance from low ohms measurements
  • Auto and manual ranging for maximum flexibility
FLUKE-87-5 Specifications:
  • Operating (excluding Probe): -200°C to 1090°C(-328°F to 1994°F)
  • AC/DC range: 600 mV, 6 V, 60 V, 600 V, and 1000 V
  • AC/DC current range: 600 µ A, 6000 µ A, 60 mA, 600 mA, 6 A, and 10 A
  • 80BK temperature probe: -40°C to 260°C(-40°F to 500°F)
  • Resistance: 600Ω, 6kΩ, 60 kΩ, 600 kΩ, 6MΩ, and 50MΩ
  • Capacitance: 10nF, 100 nF, 1 µ F, 10 µ F, 100 µ F, and 9.999 µ F
  • Frequency: 199.99Hz, 1.9999kHz, 19.999kHz, and 199.99kHz
  • Electrical safety: Category III, 1000 V and category IV, 600 V
  • Battery type: 9 V zinc, NEDA 1604 or 6F22 or 006P
  • Shock: 1 meter drop per IEC 61010-1-1:2001
  • Dimensions: 1.25 x 3.41 x 7.35"
  • FLUKE-87-5 Includes:
    • 1 - TL75 - Test Leads
    • 1 - AC172 - Alligator Clips
    • 1 - Integrated Holster
    • 1 - 9V Battery (installed)
    • 1 - 80BK-A - Temperature Probe
    • 1 - CD-ROM and operator's guide
  • Product Description

    The Fluke FLUKE-87-5 is an industrial True-RMS multimeter.

    Fluke FLUKE-87-5 Features:
    • Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment
    • Built-in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument
    • Optional magnetic hanger for easy setup and viewing while freeing your hands for other tasks
    • Large display digits and 2-level bright white backlight for increased visibility
    • Withstands hazardous 8,000 volt spikes caused by load switching and faults on industrial circuits and complies with second edition ANSI and IEC electrical safety standards
    • Improved sleep mode for long battery life
    • Relative mode to remove test lead resistance from low ohms measurements
    • Auto and manual ranging for maximum flexibility
    FLUKE-87-5 Specifications:
    • Operating (excluding Probe): -200°C to 1090°C(-328°F to 1994°F)
    • AC/DC range: 600 mV, 6 V, 60 V, 600 V, and 1000 V
    • AC/DC current range: 600 µ A, 6000 µ A, 60 mA, 600 mA, 6 A, and 10 A
    • 80BK temperature probe: -40°C to 260°C(-40°F to 500°F)
    • Resistance: 600Ω, 6kΩ, 60 kΩ, 600 kΩ, 6MΩ, and 50MΩ
    • Capacitance: 10nF, 100 nF, 1 µ F, 10 µ F, 100 µ F, and 9.999 µ F
    • Frequency: 199.99Hz, 1.9999kHz, 19.999kHz, and 199.99kHz
    • Electrical safety: Category III, 1000 V and category IV, 600 V
    • Battery type: 9 V zinc, NEDA 1604 or 6F22 or 006P
    • Shock: 1 meter drop per IEC 61010-1-1:2001
    • Dimensions: 1.25 x 3.41 x 7.35"
  • FLUKE-87-5 Includes:
    • 1 - TL75 - Test Leads
    • 1 - AC172 - Alligator Clips
    • 1 - Integrated Holster
    • 1 - 9V Battery (installed)
    • 1 - 80BK-A - Temperature Probe
    • 1 - CD-ROM and operator's guide
  • Technical Information

    BrandFluke
    Weight: 1.538
    Country Of Origin: US
    UPC Code: 095969245241
