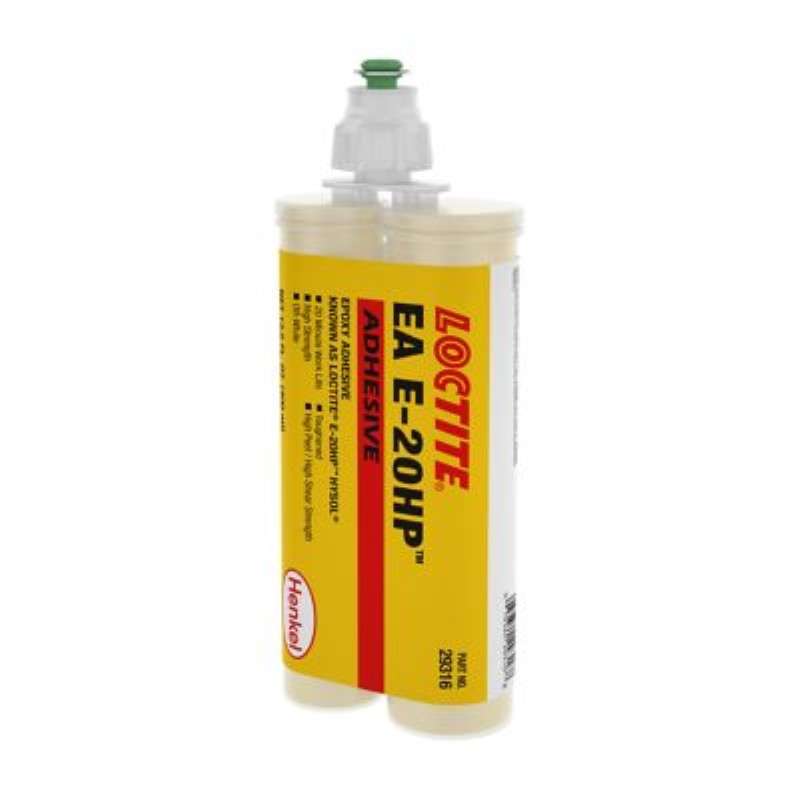

E-20HP™ Hysol® Epoxy Adhesive, High Performance, Easy-Mixing, 400 ml Dual Cartridge

237109-30769 MFG #: 237109
$87.59 / EA
Quantity Pricing
1 $87.59
6 $85.90 Save 2 %
18 $84.28 Save 4 %
Available to Order - 0 on Hand
  • Brand Name: Loctite
  • Series: E-20HP
  • Product Type: Epoxy Adhesive
  • Hardness: 80Shore D
  • Material Compatibility: Plastic, Metal
  • Color: Part A:Pale Yellow to Off-White,Part B:Light Yellow
  • Primary Color: Part A:Pale Yellow to Off-White,Part B:Light Yellow
  • Mix Ratio: 100:55
  • Physical Form: Liquid
  • Cure Time: 24h
  • Viscosity Measurement: Part A:65000,Part B:7000mPa/s
  • Shelf Life: 730 Days From Date of Manufacture
  • Chemical Composition: Part A:Epoxy Resin, Substituted Silane,Part B:Polyglycol Diamine, Acid Salt, Glycerol, Substituted Aminophenol, Diethyleneglycol Monoethyl Ether, Alcohol Derivative, Substituted Aminophenol, Ethylene Glycol
  • Length: 10.0 in.
  • Specific Gravity: Part A:1.1,Part:1.15
  • Width: 4.0 in.
  • Height: 2.0 in.
  • VOCs Content: Part A:0,Part B:<10g/L
  • Odor: Part A:Faint Epoxy,Part B:Mild
  • Cure Type: Room 77°F
  • Dielectric Strength: 500V/mil
  • Elongation at Break: 8%
  • Container Capacity: 400ml
  • Container Type: Dual Cartridge
  • Applications: General Purpose, Industrial, Architectural
  • Package Quantity: 6CA
  • Maximum Storage Temperature: 82
  • Minimum Storage Temperature: 46
  • Size: 400ml

HazardousThis item is hazardous and may be subject to an additional handling fee.

The Loctite 237109 is a pale yellow, epoxy adhesive that comes in a 400 ml dual cartridge. The fast setting adhesive features a 20-minute worklife and is great for use on fiber optic components.

Loctite 237109 Features:
  • Brand: Hysol®
  • Series: E-20HP
  • Product Type: Epoxy Adhesive
  • Hardness: 80Shore D
  • Material Compatibility: Plastic, Metal
  • Color: Part A:Pale Yellow to Off-White, Part B:Light Yellow
  • Primary Color: Part A:Pale Yellow to Off-White, Part B:Light Yellow
  • Mix Ratio: 100:55
  • Physical Form: Liquid
  • Cure Time: 24h
  • Viscosity Measurement: Part A:65000, Part B:7000mPa/s
  • Chemical Composition: Part A:Epoxy Resin, Substituted Silane, Part B:Polyglycol Diamine, Acid Salt, Glycerol, Substituted Aminophenol, Diethyleneglycol Monoethyl Ether, Alcohol Derivative, Substituted Aminophenol, Ethylene Glycol
  • Specific Gravity: Part A:1.1, Part:1.15
  • VOCs Content: Part A:0, Part B:<10g/L
  • Odor: Part A:Faint Epoxy, Part B:Mild
  • Cure Type: Room 77°F
  • Dielectric Strength: 500V/mil
  • Elongation at Break: 8%
  • Tensile Strength?: 5700psi
  • Container Capacity: 400ml
  • Container Type: Dual Cartridge
  • Applications: General Purpose, Industrial, Architectural
  • Package Quantity: 6CA
