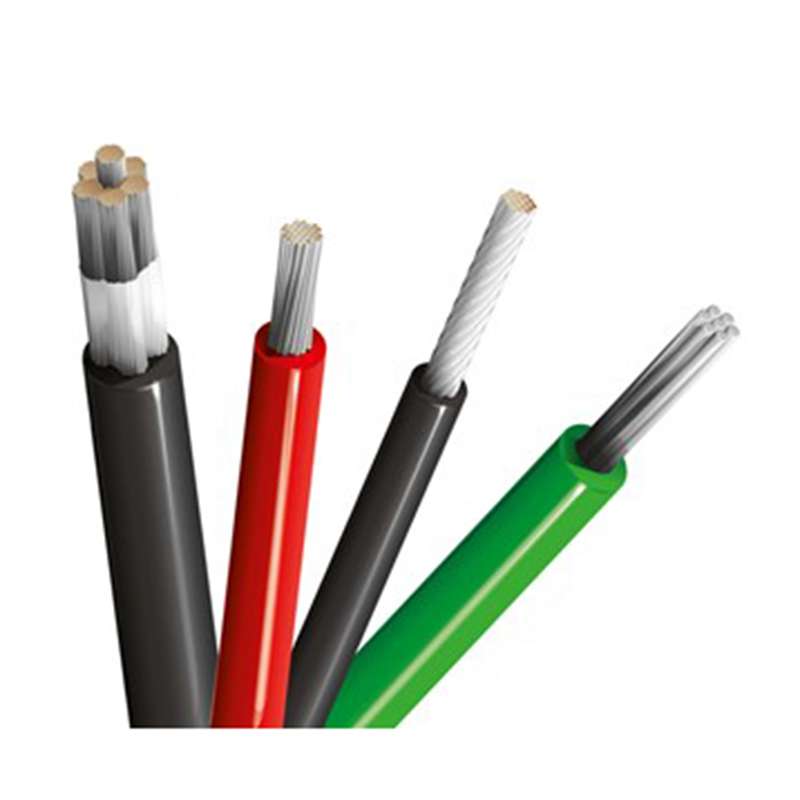

Belden® 30802250-9 Hook-up/Lead Wire, 2 AWG, 600 V, 0.496 in x 250 ft, White
Hisco #:30802250-9-12201
MFG #:30802250-9
Our Price: $13.80 Foot
Available to Order - 0 on Hand
Manufacturer Estimated Lead Time When Not In Stock: 101 days
Minimum Order QTY: 250 Feet
Item must be ordered in multiples of 250
Item must be ordered in multiples of 250
| Quantity | Price | Save |
|---|---|---|
| 750 | 13.09 | Save |
The Belden 30802250-9 is a Series 308 silicone rubber wire .
The Belden 30802250-9 Features:- Series: 308
- Length: 250ft
- Number of Cores: 1
- Outer Diameter: 0.496in
- Current Rating: 293A
- Screened or Unscreened: Screened
- Sheath Material: Silicone with Lacquered Glass
- Voltage Rating: 600V
- Core Strands: 163/24
- Conductor Resistance: 0.52Ω/km
- Conductor Material: Tinned Copper
- Insulation Material: Silicone Rubber
- Material Category: Rubber
- American Wire Gauge: 2AWG
- Insulation Thickness: 0.060in
- Screen Type: Braid
- Sheath Color: White
- Primary Color: White
- Cable Shape: Single Core
- Standards Met: UL AWM Style 3125:CSA Type SEW-2, RoHS Compliant
- Minimum Operating Temperature: -70°C
- Number of Strands: 163
- Size of Strands: 24AWG
- Maximum Operating Temperature: +200°C
