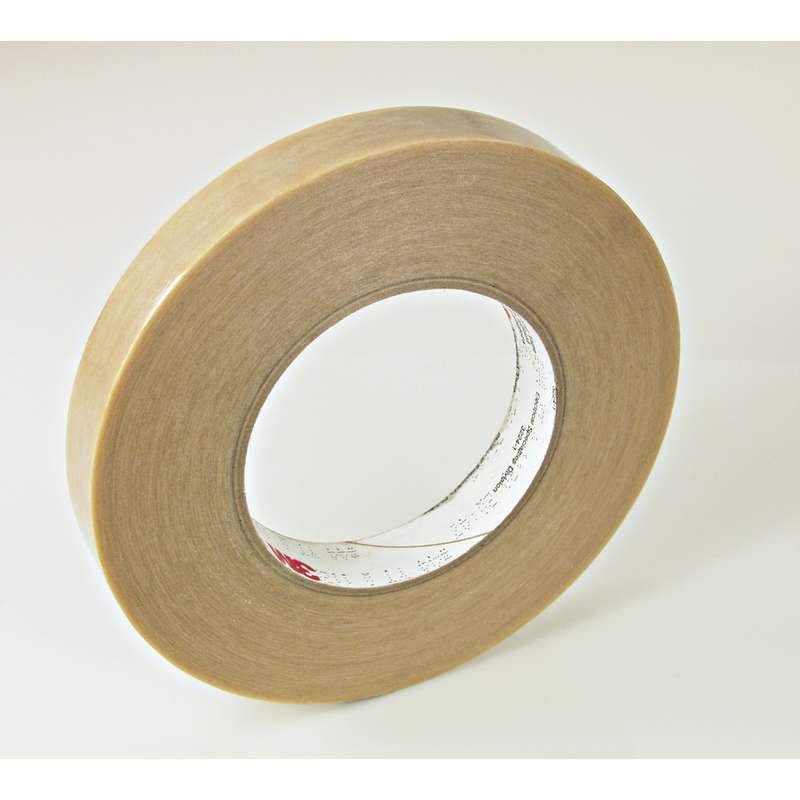

3M™ Composite Film Electrical Tape 44, 23-1/2 in x 90 yd, Log Roll Untrimmed

3M44235X90YDSLOG-31196 MFG #: 00051138527105
$494.75 / RL
Available to Order - 0 on Hand
  • Brand Name: 3M
  • Series: 44
  • Product Type: Electrical Tape
  • Backing Material: Polyester Film/Polyester Web Film
  • Adhesive Material: Thermosetting Rubber
  • Material Category: Plastic
  • Color: Caramel Translucent
  • Primary Color: Clear
  • Width: 23.5in
  • Length: 90yd
  • Thickness: 5.5mil
  • Adhesion Strength: 65oz/in
  • Tensile Strength: 40lb/in
  • Elongation at Break: 50%
  • Resistance Properties: Puncture Resistant; Insulation Resistant; Solvent Resistant
  • Applications: Used for Stick-Wound Coils/Transformers and in Bobbin-Wound Coils for Banding, Anchoring, and Insulating, and for Protecting Start Wires, Leads, Terminal Strips, Insulation Paper, End Turns and Connections in Motors and Transformers
  • Maximum Operating Temperature: +262°F

3M™ Tape 44 is a low halogen, edge tear resistant, electrical tape that's suitable for general purpose insulation, as well as anchoring and banding in motors and transformers. The tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).

3M 00051138527105 Features:
  • The combination of the thermosetting, rubber adhesive and the polyester-web and polyester film backing provides excellent adherence and dielectric strength
  • Offers great electrical properties and is puncture-resistant
  • Ideal for economical, general-purpose insulation, anchoring and banding in motors and transformers
  • For protecting start wires, leads, terminal strips and insulation paper
  • Withstands a temperature range of 32 to 266 degrees F (0 to 130 degrees C)
  • UL Listed and RoHS 2011/65/EU Compliant
3M 00051138527105 Specifications:
  • Length: 90
  • Width: 23.5
  • Product Type: Special tapes
  • Backing Material: Composite Film
  • Color: Transparent
  • Part Number: 44
  • Thickness: 5.5
Pack: Roll
