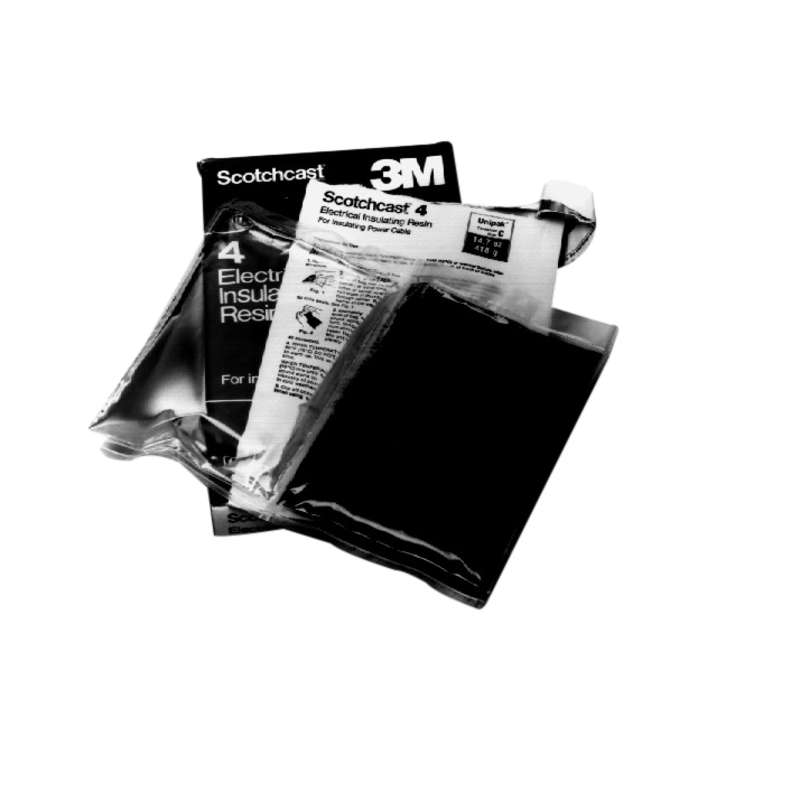

3M™ Scotchcast™ Electrical Insulating Resin 4N-A, (3.1 oz), 10 /Case

4N-A-3-1-31180 MFG #: 4N-A
$33.45 / PK
Available to Order - 0 on Hand
  • Brand Name: 3M
  • Series: 4N
  • Product Type: Epoxy Adhesive
  • Hardness: 80 Shore D
  • Color: Black
  • Primary Color: Black
  • Physical Form: Liquid
  • Cure Time: 4 to 8 h
  • Viscosity Measurement: 3000 to 4500 cP
  • Shelf Life: 1095 Days From Date of Manufacture
  • Chemical Composition: STYRENATED PHENOL;HEAVY NAPHTHENIC DISTILLATE SOLVENT PETROLEUM EXTRACTS;N-AMINOETHYLPIPERAZINE;Alkyl Acids, Reaction Products With Triethylenetetramine;Alkyl Acids, Reaction Products With TETA And DGEBA;Thermal cracked residuum (petroleum);PETROLEUM
  • Specific Gravity: 1.03
  • Odor: Amine
  • Cure Type: Heat Cure
  • Dielectric Strength: 500 V/mil
  • Elongation at Break: 4 %
  • Gel Time: 16 min
  • Maximum Operating Temperature: +130 °C
  • Container Capacity: 3.1 oz
  • Container Type: BG
  • Applications: Multi-Purpose Moisture Sealing Resin that Remains Stable, Even at Elevated Temperatures;The Resin Bonds to Itself and to Nearly all Modern Cable Jackets
  • Package Quantity: 10 EACH

3M™ Scotchcast™ Electrical Insulating Resin 4N, with nozzel and guard bag, is a 2 part, insulating and encapsulating, epoxy based, liquid resin that generates its own heat to cure. Compatible with solid/synthetic cable insulations and jackets, this resin makes an excellent insulator and sealer for cable splicing.

3M™ Scotchcast™ Electrical Resin 4N A is a multi purpose moisture sealing resin that remains stable, even at elevated temperatures. The resin bonds to itself and to nearly all modern cable jackets. It allows you to splice solid dielectric and oil filled cables up to 8 kV and to jacket high voltage splices. This resin is used in 82 H, 82 B1, 85 14CP and 90 B1 Series splice kits. ASTM Approved and RoHS 2011/65/EU Compliant?.

3M 4N-A Features:
  • 80 Shore D hardness
  • Has 16-minute gel time at 73 °F (23 °C)
  • Useful for splicing solid dielectric and oil-filled cables up to 8 kV
  • Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
  • Elongates 4% longer than its original size for easy insulation or wrapping
  • Withstands a voltage rating of 8 kV or less (for splicing solid dielectric and oil-filled cables)
3M 4N-A Specifications:
  • Color: Black
  • Hardness: 80 Shore D
  • Material: Epoxy
  • Package Quantity: 10 EACH
  • Part Number: 4N-A
