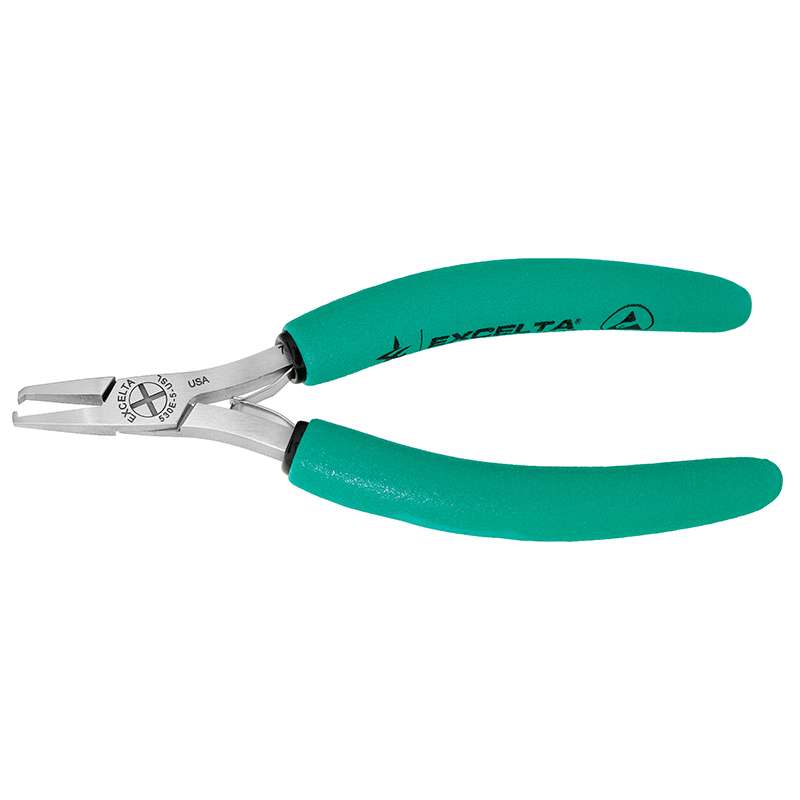

Cutters, Standoff Shear Small Frame, .030" Standoff, Narrow Jaw
Hisco #:530E-5-USL-030-18168
MFG #:530E-5-USL-030
Item must be ordered in multiples of 1
| Quantity | Price | Save |
|---|---|---|
| 1 | 191.30 | |
| 3 | 183.45 | Save |
The Excelta 530E-5-USL-030 is a 6" narrow anti-shock shear cutter designed to reduce shock on delicate components and solder connections. The "Stand-Off" keeps the cutting blade from cutting into the solder connections. The tip width is .090". It's recommended cutting capacity is 22 AWG (.25" soft wire). It features an soft cushioned ergonomic Anti-Static grip (10¹⁰ ohms/sq surface resistivity) with dual leaf springs.
Excelta 530E-5-USL-030 Features:- Reduces shock
- Offers ergonomic grip
- Utilizes dual leaf springs for ease of use
- Precision: 5 Star
- Surface Resistivity: 10¹⁰ ohms/sq
- Shape: Straight
- Brand: TealShield™
- Material: Carbon
- Tip Size: .09" x .030" (2.25mm x .75mm)
- Body Height: 0.25" (6.25mm)
- Width at Joint: 0.42" (10.5mm)
- Cutting Edge Length: .095"
- Handle Type: Long Cushioned Grips
- Type of Cut: Shear
- Maximum Cut Capacity (Inches): .025"
- Maximum Cut Capacity (mm): .63 mm
- Maximum Cut Capacity (AWG): 22AWG
- Overall Length: 6" (150mm)
Product Description
The Excelta 530E-5-USL-030 is a 6" narrow anti-shock shear cutter designed to reduce shock on delicate components and solder connections. The "Stand-Off" keeps the cutting blade from cutting into the solder connections. The tip width is .090". It's recommended cutting capacity is 22 AWG (.25" soft wire). It features an soft cushioned ergonomic Anti-Static grip (10¹⁰ ohms/sq surface resistivity) with dual leaf springs.
Excelta 530E-5-USL-030 Features:- Reduces shock
- Offers ergonomic grip
- Utilizes dual leaf springs for ease of use
- Precision: 5 Star
- Surface Resistivity: 10¹⁰ ohms/sq
- Shape: Straight
- Brand: TealShield™
- Material: Carbon
- Tip Size: .09" x .030" (2.25mm x .75mm)
- Body Height: 0.25" (6.25mm)
- Width at Joint: 0.42" (10.5mm)
- Cutting Edge Length: .095"
- Handle Type: Long Cushioned Grips
- Type of Cut: Shear
- Maximum Cut Capacity (Inches): .025"
- Maximum Cut Capacity (mm): .63 mm
- Maximum Cut Capacity (AWG): 22AWG
- Overall Length: 6" (150mm)
