Cutters, Standoff Shear Small Frame, .050" Standoff, Narrow Jaw
Hisco #:530E-5-USL-050-18168
MFG #:530E-5-USL-050
Item must be ordered in multiples of 1

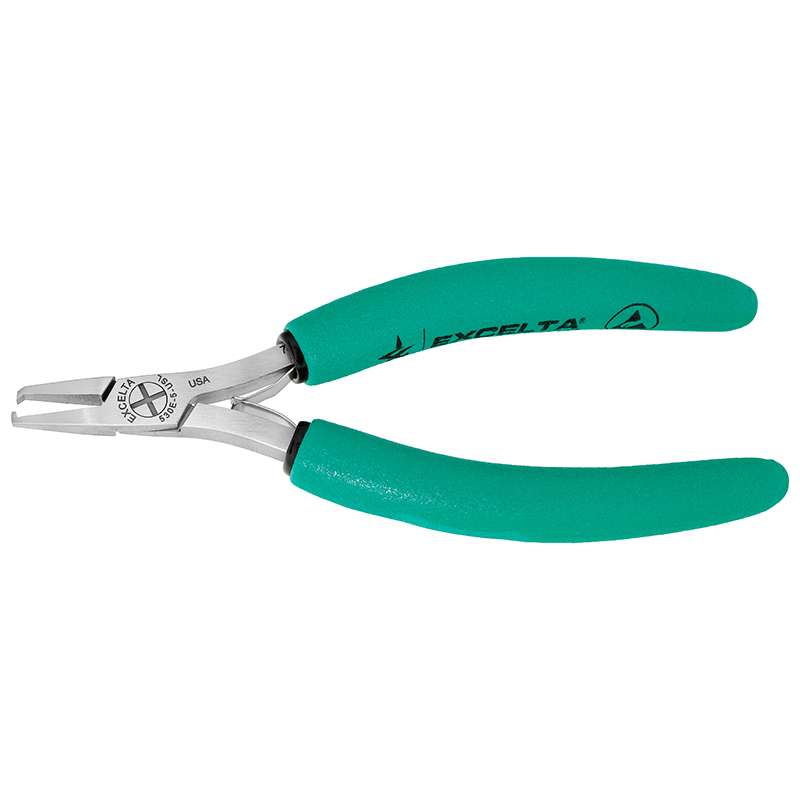

The Excelta 530E-5-USL-050 is a 6" narrow anti-shock shear cutter which reduces shock on delicate components and solder connections. The "Stand-Off" keeps the cutting blade from cutting into the solder connections. The tip width is .090". It's recommended cutting capacity is 22 AWG (.25" soft wire). It features a soft cushioned ergonomic Anti-Static grip (10¹⁰ ohms/sq surface resistivity) with dual leaf springs.
Excelta 530E-5-USL-050 Features:- Offers ergonomic grip
- Reduces shock
- Avoids solder connections
- Precision: 5 Star
- Surface Resistivity: 10¹⁰ ohms/sq
- Shape: Straight
- Brand: TealShield™
- Material: Carbon
- Tip Size: .09" x .050" (2.25mm x 1.25mm)
- Body Height: 0.25" (6.25mm)
- Width at Joint: 0.42" (10.5mm)
- Cutting Edge Length: .095"
- Handle Type: Long Cushioned Grips
- Type of Cut: Shear
- Maximum Cut Capacity (Inches): .025"
- Maximum Cut Capacity (mm): .63 mm
- Maximum Cut Capacity (AWG): 22AWG
- Overall Length: 6" (150mm)
Product Description
The Excelta 530E-5-USL-050 is a 6" narrow anti-shock shear cutter which reduces shock on delicate components and solder connections. The "Stand-Off" keeps the cutting blade from cutting into the solder connections. The tip width is .090". It's recommended cutting capacity is 22 AWG (.25" soft wire). It features a soft cushioned ergonomic Anti-Static grip (10¹⁰ ohms/sq surface resistivity) with dual leaf springs.
Excelta 530E-5-USL-050 Features:- Offers ergonomic grip
- Reduces shock
- Avoids solder connections
- Precision: 5 Star
- Surface Resistivity: 10¹⁰ ohms/sq
- Shape: Straight
- Brand: TealShield™
- Material: Carbon
- Tip Size: .09" x .050" (2.25mm x 1.25mm)
- Body Height: 0.25" (6.25mm)
- Width at Joint: 0.42" (10.5mm)
- Cutting Edge Length: .095"
- Handle Type: Long Cushioned Grips
- Type of Cut: Shear
- Maximum Cut Capacity (Inches): .025"
- Maximum Cut Capacity (mm): .63 mm
- Maximum Cut Capacity (AWG): 22AWG
- Overall Length: 6" (150mm)
