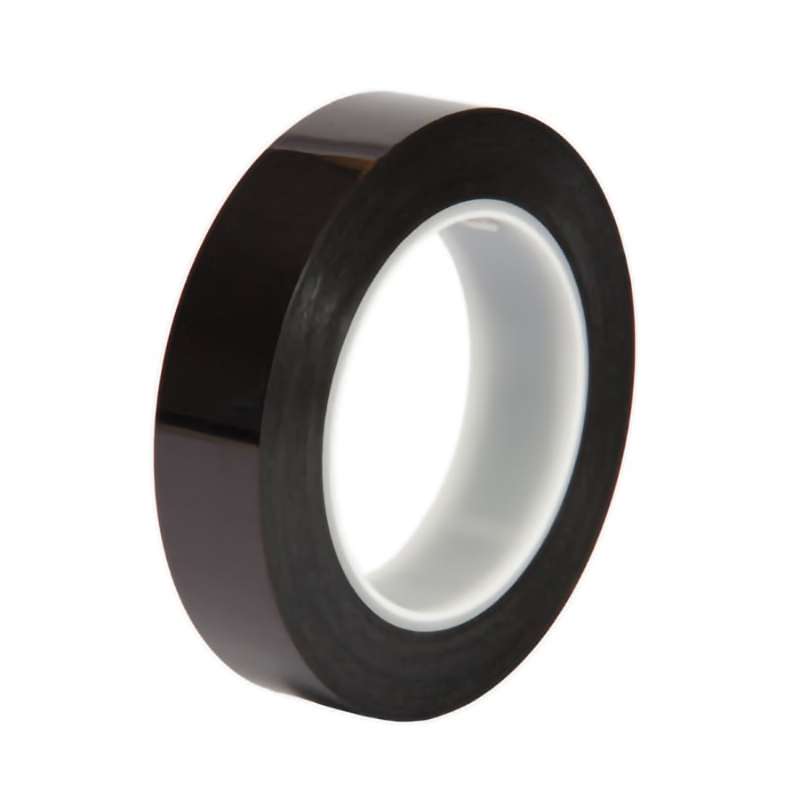

Kapton Tape, 1"x36 Yds, 3" Core, 6.5 mil, Silicone Adhesive

These Kapton tapes feature a polyimide backing and silicone adhesive, offering:

• Exceptional thermal resistance and excellent electrical insulating properties.
• Temperature resistant to 500°F

This tape is used in applications where:

• Toughness, puncture resistance, extreme resistance to heat, and flame retardance are required.

Polyimide high temperature tapes are employed for various applications:

• Providing protection to gold fingers during wave soldering.
• Serving as ground barriers and phase insulation in high-performance coils.
• Acting as outer wraps for small bobbin wound coils and use in form wound coils for traction motors.

The manufacturing process involves:

• Coating the polyimide film with a desired adhesive system.
• Resulting in film thicknesses ranging from 0.5 mil to 10 mils.
• Adhesive thicknesses ranging from 0.5 mil to 2 mils.
