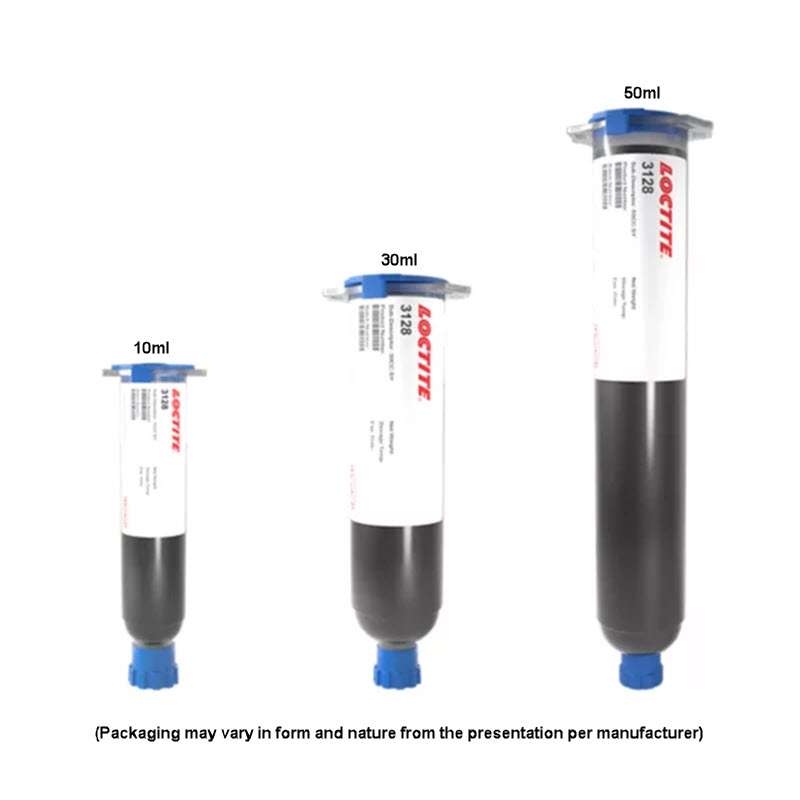

3128 One Component Epoxy Encapsulant Adhesive, 10 mL
Hisco #:623566-34899
MFG #:623566
Item must be ordered in multiples of 25
| Quantity | Price | Save |
|---|---|---|
| 75 | 64.45 | Save |
The Loctite 623566 is a heat curable, one part epoxy adhesive. Although it is heat curable, it was designed to cure at a low temperature and provides excellent adhesion on a wide range of materials in a short period of time. Memory cards and CCD/CMOS Assemblies are some of the more common applications this product is used for. Ideal for use where low curing temperatures are required for heat sensitive components.
Henkel Shipping Note: Item requires dry ice and overnight shipment and cannot ship on Fridays.
- Series: 3128
- Product Type: Epoxy Adhesive
- Hardness: 88Shore D
- Color: Black
- Primary Color: Black
- Physical Form: Viscous Liquid
- Cure Time: 60min
- Viscosity Measurement: 7000 to 27000mPa/s
- Chemical Composition: Calcium Carbonate, Epoxy Resin, Substituted Propane Derivative, Talc, Carbon Black, Epoxy Resin
- Specific Gravity: 1.64
- VOCs Content: 0g/L
- Odor: Mild
- Cure Type: Heat Cure
- Elongation at Break: 2.3%
- Gel Time: 14days
- Tensile Strength: 5100psi
- Container Capacity: 10ml
- Applications: Bonding Heat Sensitive Components, Memory Cards, CCD/CMOS Assemblies
Product Description
The Loctite 623566 is a heat curable, one part epoxy adhesive. Although it is heat curable, it was designed to cure at a low temperature and provides excellent adhesion on a wide range of materials in a short period of time. Memory cards and CCD/CMOS Assemblies are some of the more common applications this product is used for. Ideal for use where low curing temperatures are required for heat sensitive components.
Henkel Shipping Note: Item requires dry ice and overnight shipment and cannot ship on Fridays.
- Series: 3128
- Product Type: Epoxy Adhesive
- Hardness: 88Shore D
- Color: Black
- Primary Color: Black
- Physical Form: Viscous Liquid
- Cure Time: 60min
- Viscosity Measurement: 7000 to 27000mPa/s
- Chemical Composition: Calcium Carbonate, Epoxy Resin, Substituted Propane Derivative, Talc, Carbon Black, Epoxy Resin
- Specific Gravity: 1.64
- VOCs Content: 0g/L
- Odor: Mild
- Cure Type: Heat Cure
- Elongation at Break: 2.3%
- Gel Time: 14days
- Tensile Strength: 5100psi
- Container Capacity: 10ml
- Applications: Bonding Heat Sensitive Components, Memory Cards, CCD/CMOS Assemblies
Technical Information
Additional Resources
Item must be ordered in multiples of 25
