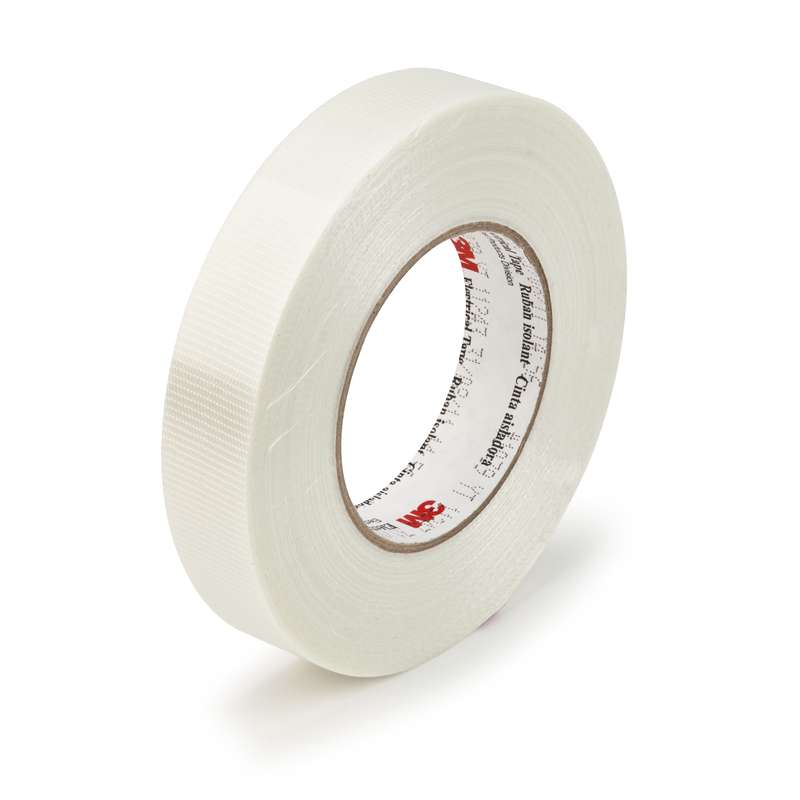

3M™ Filament-Reinforced Electrical Tape 1039, 23 in x 60 yd, Paper Core

7100002918-31180 MFG #: 7100002918
$0.00 / RL
Available to Order - 0 on Hand
  • Brand Name: 3M
  • Product Type: Electrical Tapes

3M™ Filament Reinforced Electrical Tape 1039 is a 7 mil thick, solvent resistant, electrical filament tape that has a polyester film/glass filament scrim backing and a chemical resistant, acrylic adhesive. The tape is 600V rated and withstands a temperature range of 40 to 266 °F ( 40 to 130 °C).

3M 7100002918 Features:
  • 23 in x 60 yd
  • Conformable, solvent-resistant, high temperature filament tape with acrylic adhesive
  • Strong tape backing with an adhesive that provides a durable bond to substrates
  • Designed for applications needing both the dielectric strength of polyester film and the high mechanical strength of glass fibers
  • Low stretch, high tensile and edge-tear resistant
  • Excellent for anchoring lead wires to banding coils and end-turn taping
  • Withstands such stress as the high-speed coil winding process used for making dry-type transformers
3M 7100002918 Specifications:
  • Length: 60
  • Width: 23
  • Product Type: Filament Reinforced Tape
  • Backing Material: Filamanet Reinforced
  • Material: Polyester film, fiberglass
  • Part Number: 1039
  • Thickness: 7
