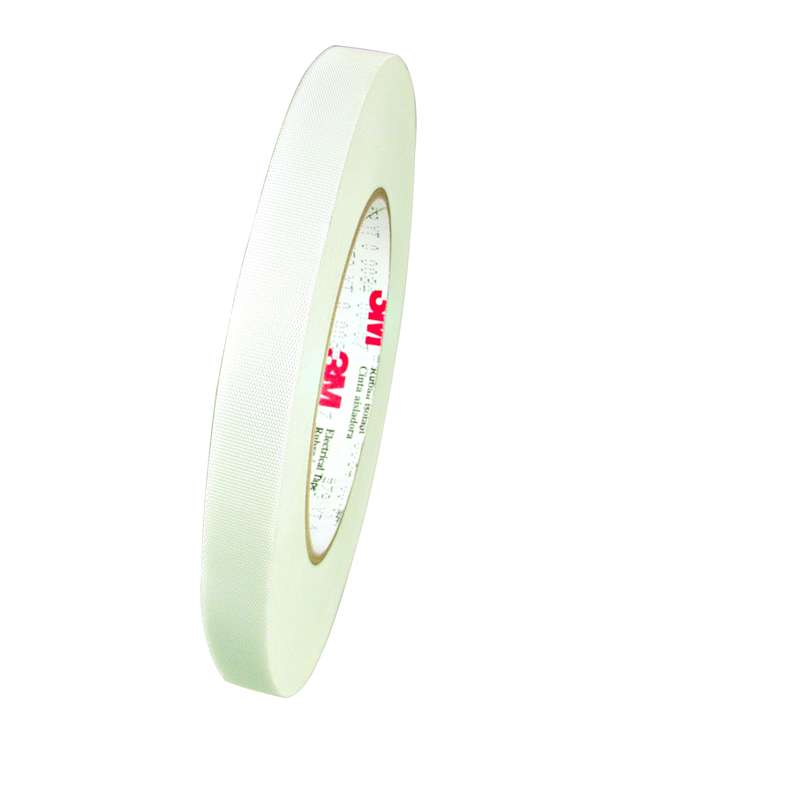

3M™ Glass Cloth Electrical Tape 79, 2 in X 60 yds, Bulk, 3-in paper, Bulk

80610888507-31196 MFG #: 79
$91.73 / RL
Available to Order - 0 on Hand
  • Brand Name: 3M
  • Series: 79
  • Product Type: Electrical Tape
  • Backing Material: Glass Cloth
  • Adhesive Material: Acrylic
  • Color: White
  • Primary Color: White
  • Width: 2in
  • Length: 60yd
  • Thickness: 7mil
  • Adhesion Strength: 30oz/in
  • Tensile Strength: 150lb/in
  • Elongation at Break: 5%
  • Resistance Properties: Insulation Resistant; Solvent Resistant; Edge Tear Resistant
  • Applications: Used in a Variety of Coil/Transformer and Motor, Including an Outer Wrap for Bobbin Wound Coils, Banding Arbor Wound Coils, Lead Pad Hold Down, End Turn and Lead Anchor and Connection, Used for Banding and Strapping up to 150°C
  • Maximum Operating Temperature: +302°F
  • Minimum Operating Temperature: +32°F
  • Adhesive Type: Acrylic
  • Maximum Storage Temperature: 80
  • Minimum Storage Temperature: 50

3M™ Glass Cloth Electrical Tape 79 is a printable tape used in coils/transformers and motor applications. It includes an outer wrap for bobbin wound coils, banding arbor wound coils, lead pad hold downs, end turns and lead anchors, as well as connections. This tape is 600V rated and withstands a temperature range of 32 to 302 °F (0 to 150 °C).

3M 79 Features:
  • Pressure-sensitive, acrylic adhesive offers optimized adherence
  • Glass cloth backing ensures maximum stability
  • Designed for coils/transformers and motor applications
  • Printable and has the ability to absorb resin and varnishes
  • Withstands a temperature range of 32 to 302 degrees F (0 to 150 degrees C)
  • Highly conformable and resists solvents
  • UL Listed and RoHS 2011/65/EU Compliant
3M 79 Specifications:
  • Length: 60
  • Width: 2
  • Color: White
