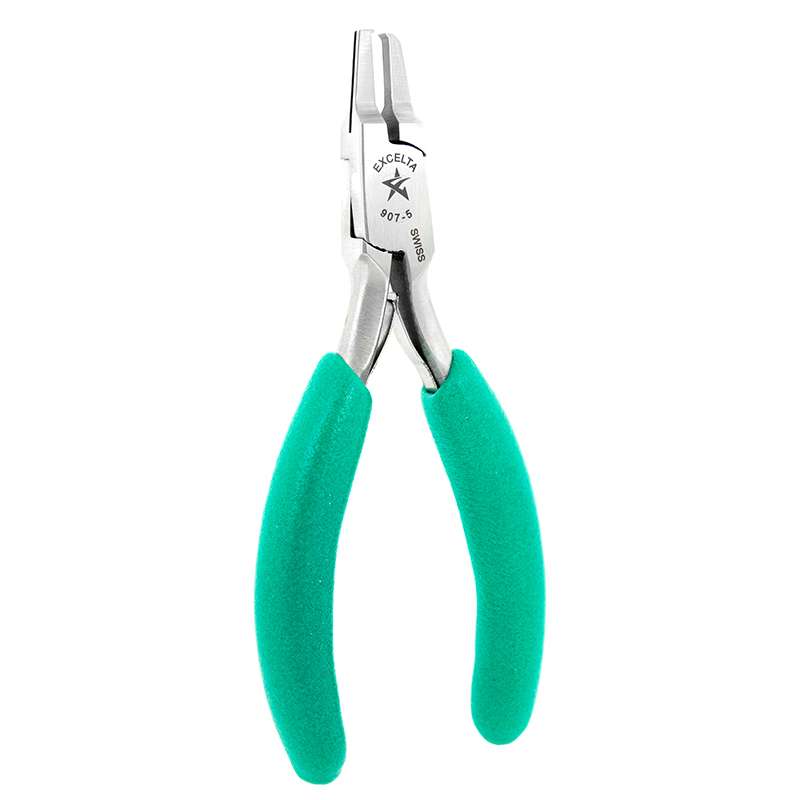

Cutters, Standoff Shear Large Frame, For Connector Pins, Carbon Steel, .040" Standoff
Hisco #:907-5-040-18168
MFG #:907-5-040
Item must be ordered in multiples of 1

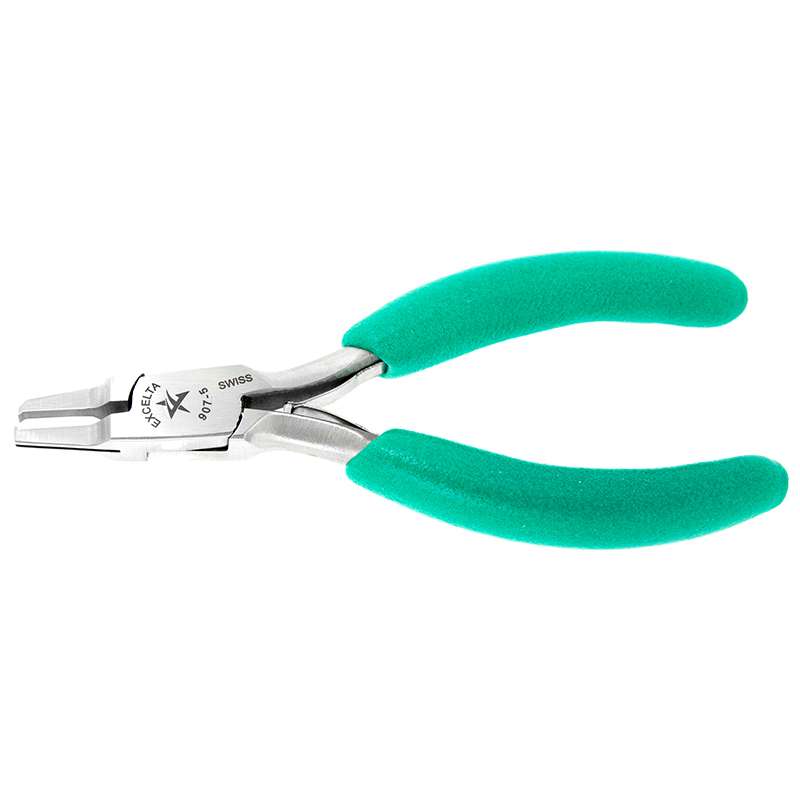

The Excelta 907-5-040 is a 5.25" connector pin shear cutting plier is designed with grooves on the outside of the jaws to fit between connector pins and provide a clean cut. The tip width is 1.00". Recommended cutting capacity is 22AWG (.025" diameter). Standard stand-off is .040". It features soft cushioned ergonomic Anti-Static grips (10¹⁰ ohms/sq surface resistivity) with dual leaf springs for smooth action.
Excelta 907-5-040 Features:- Cuts up to 22AWG wire
- Offers ergonomic grip
- Fits between connector pins
- Precision: 5 Star
- Surface Resistivity: 10¹⁰ ohms/sq
- Shape: Straight
- Brand: TealShield™
- Material: Carbon
- Tip Size: .10" (2.5mm) dia.
- Body Height: 0.26" (6.5mm)
- Width at Joint: 0.43" (10.75mm)
- Handle Type: Standard Cushioned Grips
- Type of Cut: Shear
- Maximum Cut Capacity (Inches): .025"
- Maximum Cut Capacity (mm): .63 mm
- Maximum Cut Capacity (AWG): 22AWG
- Overall Length: 5.25" (131.25mm)
Product Description
The Excelta 907-5-040 is a 5.25" connector pin shear cutting plier is designed with grooves on the outside of the jaws to fit between connector pins and provide a clean cut. The tip width is 1.00". Recommended cutting capacity is 22AWG (.025" diameter). Standard stand-off is .040". It features soft cushioned ergonomic Anti-Static grips (10¹⁰ ohms/sq surface resistivity) with dual leaf springs for smooth action.
Excelta 907-5-040 Features:- Cuts up to 22AWG wire
- Offers ergonomic grip
- Fits between connector pins
- Precision: 5 Star
- Surface Resistivity: 10¹⁰ ohms/sq
- Shape: Straight
- Brand: TealShield™
- Material: Carbon
- Tip Size: .10" (2.5mm) dia.
- Body Height: 0.26" (6.5mm)
- Width at Joint: 0.43" (10.75mm)
- Handle Type: Standard Cushioned Grips
- Type of Cut: Shear
- Maximum Cut Capacity (Inches): .025"
- Maximum Cut Capacity (mm): .63 mm
- Maximum Cut Capacity (AWG): 22AWG
- Overall Length: 5.25" (131.25mm)
