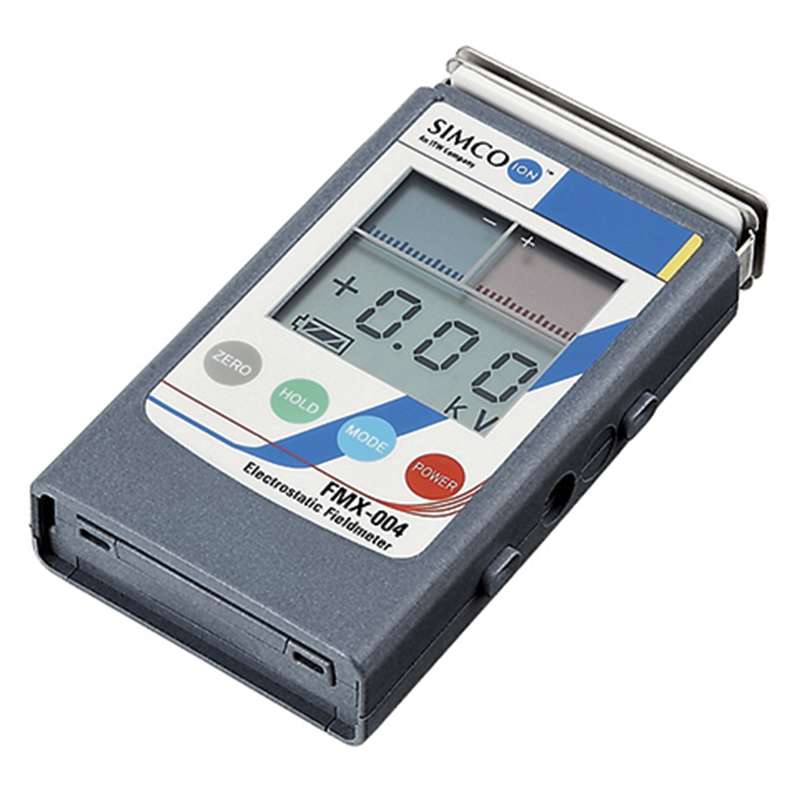

FMX-004 Electrostatic FieldMeter with Extended Range and Charge Plate

Hisco #:91-FMX-004-45325

MFG #:91-FMX-004

Our Price: $863.00 EA
Manufacturer Lead Time When Not In Stock11 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
QuantityPriceSave
1863.00
3841.97Save 2%

The Simco-Ion 91-FMX-004 is a compact electrostatic Fieldmeter with extended range and charge plate. Designed to be used in applications where there's a need to locate and measure static charges. With it's compact design and four-button operation, the FMX-004 is extremely easy to operate and use in hard to reach areas. The FMX-004 Fieldmeter offers the special feature of measuring both positive and negative polarity charges up to ±30 kV (30,000V) at a distance of 1”. For optimal performance, the measuring device should be calibrated once a year.

The Simco-Ion 91-FMX-004 Features:
  • Digital display with color coded bar graphs
  • Lightweight, compact design
  • Distance ranging lights
  • Audible Alarm Feature
  • Battery powered with auto shut-off feature
  • Analog Output for feeding signals to chart recorder or other external device
The Simco-Ion 91-FMX-004 Specifications:
  • Voltage Rating: 9V
  • Power Source: Battery
  • Accuracy: ±10%
  • Battery Type: 9 V Battery
  • Range: 0 to ±1.49 kV (low range); ±1.0 kV to ±30 kV (high range)
  • Balance: 0 to ±300V
  • Applications: Locating, Measuring Static Charges

Product Description

The Simco-Ion 91-FMX-004 is a compact electrostatic Fieldmeter with extended range and charge plate. Designed to be used in applications where there's a need to locate and measure static charges. With it's compact design and four-button operation, the FMX-004 is extremely easy to operate and use in hard to reach areas. The FMX-004 Fieldmeter offers the special feature of measuring both positive and negative polarity charges up to ±30 kV (30,000V) at a distance of 1”. For optimal performance, the measuring device should be calibrated once a year.

The Simco-Ion 91-FMX-004 Features:
  • Digital display with color coded bar graphs
  • Lightweight, compact design
  • Distance ranging lights
  • Audible Alarm Feature
  • Battery powered with auto shut-off feature
  • Analog Output for feeding signals to chart recorder or other external device
The Simco-Ion 91-FMX-004 Specifications:
  • Voltage Rating: 9V
  • Power Source: Battery
  • Accuracy: ±10%
  • Battery Type: 9 V Battery
  • Range: 0 to ±1.49 kV (low range); ±1.0 kV to ±30 kV (high range)
  • Balance: 0 to ±300V
  • Applications: Locating, Measuring Static Charges

Technical Information

BrandSimco-Ion
Product TypeField Meter
Voltage Rating9V
Power SourceBattery
Accuracy±10%
Battery Type9 V Battery
Length7.3 in.
Height3.25 in.
Width4.1 in.
Depth1in
Maximum Operating Temperature+100°F
Minimum Operating Temperature+50°F
ApplicationsLocating, Measuring Static Charges
AvailabilityIn Stock
Weight: 0.73
Country Of Origin: JP
