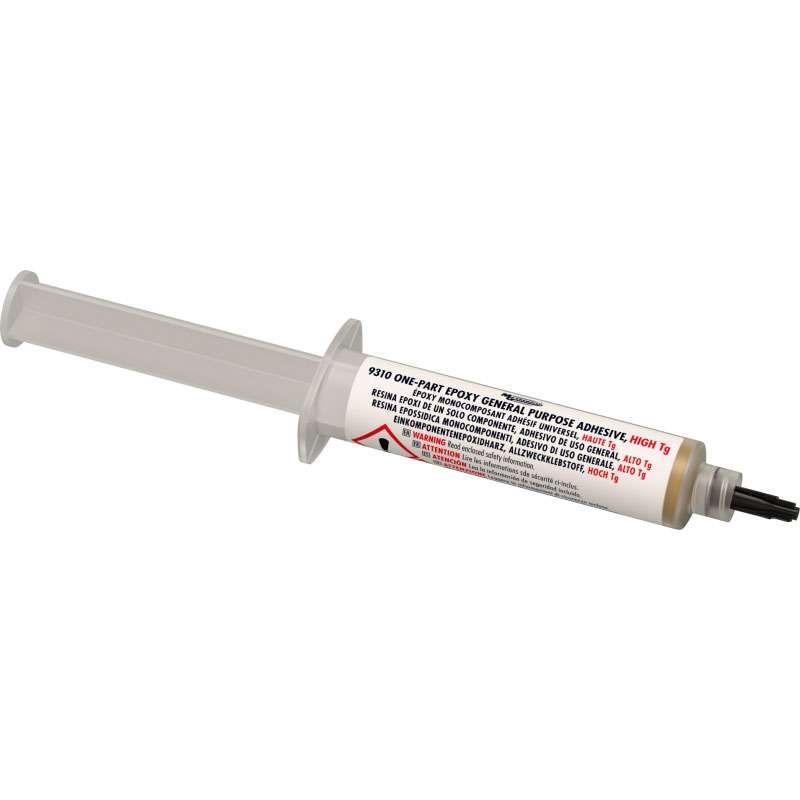

General Purpose One-Part Epoxy Adhesive, High TG, 10mL Syringe

9310-10ML-33018 MFG #: 9310-10ML
$12.80 / SZ
Quantity Pricing
1 $12.80
3 $12.07 Save 6 %
Available to Order - 0 on Hand
  • Series: 9310
  • Product Type: Epoxy Adhesive
  • Hardness: 84 Shore D
  • Color: Amber
  • Primary Color: Amber
  • Physical Form: Liquid
  • Cure Time: 30 min
  • Viscosity Measurement: >20.5 mm²/s
  • Shelf Life: 2 yr
  • Chemical Composition: bisphenol-A epoxy resin;phenol, polymer with formaldehyde
  • Specific Gravity: 1.15
  • Odor: Mild
  • Cure Type: Heat Cure
  • Dielectric Strength: 220 V/mil
  • Maximum Operating Temperature: +284 °F
  • Minimum Operating Temperature: -67 °F
  • Container Capacity: 10 ml
  • Container Type: Syringe
  • Applications: Electronic Assembly Operations;Pneumatic and Robotic Dispensing processes

The MG Chemicals 9310-10ML is a is general purpose, one-part epoxy adhesive. It is smooth, thixotropic, self-leveling, and bonds well to a wide variety of substances. It has an unlimited working life at room temperature and does not require frozen storage. This product is designed for use in electronic assembly operations. It does not require mixing and can be readily used in manual, pneumatic and robotic dispensing processes. 9310 has been formulated to have a high Tg. For a low Tg, use 9300

MG Chemicals 9310-10ML Features:
  • Attention: This item must be cured by heat
  • Minimum cure temperature of 100 °C [212 °F]
  • Unlimited working life
  • Shelf life: 2 years at room temperature
  • Provides strong electrical insultation
  • Tg of 113 °C [235 °F]
  • Strong resistance to humidity, salt water, acids, bases, and aliphatic hydrocarbons
MG Chemicals 9310-10ML Specifications:
  • Working life @22 °C [72 °F]: Unlimited
  • Shelf life @22 °C [72 °F]: 2 years
  • Full cure @22 °C [72 °F]: Heat cure only
  • Full cure @100 °C [212 °F]: 30 min
  • Full cure @120 °C [248 °F]: 10 min
Pack: Syringe
