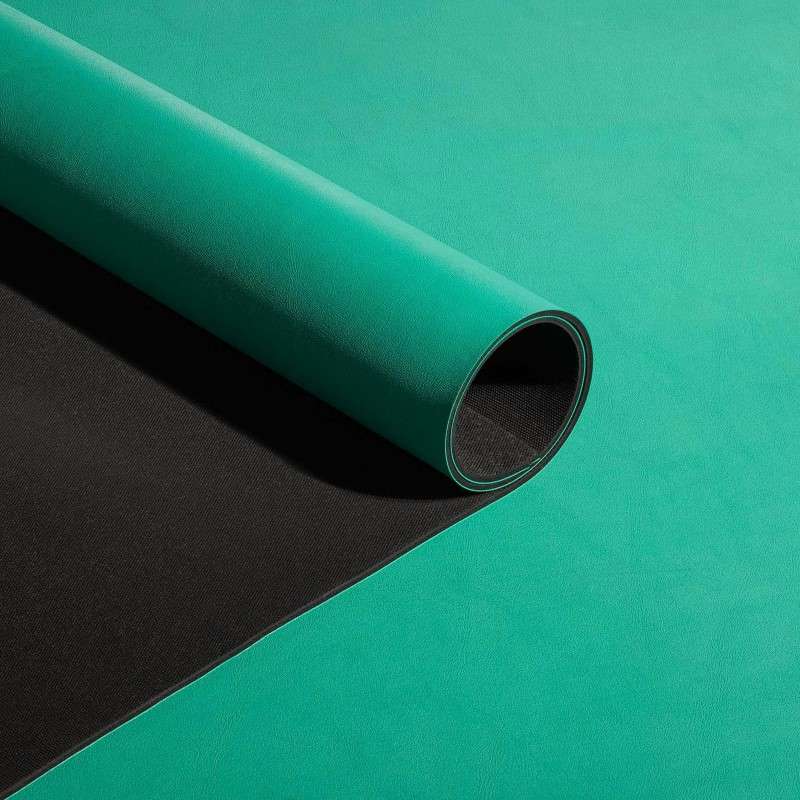

Dissipative 2 Layer Premium Rubber Mat with Snap and Ground, Green, 30" x 4.17' x 5/64"

B628304-3735 MFG #: B628304
$106.40 / EA
Quantity Pricing
1 $106.40
3 $102.79 Save 3 %
Available to Order - 0 on Hand
  • Brand Name: Botron
  • Product Type: Rubber Mat
  • Material Properties: Conductive; Dissipative
  • Color: Green
  • Primary Color: Green
  • Dimensions: 4 ft x 30 in x 0.08 in
  • Length: 4ft
  • Width: 30in
  • Thickness: 0.08in
  • Number of Layers: 2
  • Decay Time: <0.01s
  • Resistance Properties: Hot Solder Resistant; Chemical Resistant; Abrasion Resistant
  • Standards Met: ANSI EOS/ESD S4.1, Fed Std 101 Method 4046, RoHS Complaint
  • Includes: Snaps, Ground Cord
  • Material: Rubber
  • Maximum Storage Temperature: 95
  • Minimum Storage Temperature: 40
  • Shape: Rectangle
  • Type: Type T2+

The Botron B628304 is an esd mat with a length of 4.

The Botron B628304 Features:
  • Dual-Layer Design
  • Superior Electricals
  • Resistant to Hot Solder
  • Conductive Bottom Layer
  • Non-Skid Backing
  • Reversible from Dissipative to Conductive
  • Chemical and Abrasion Resistant
  • Compatible with Constant Monitors
The Botron B628304 Specifications:
  • Product Type: Rubber Mat
  • Material Properties: Conductive Dissipative
  • Color: Green
  • Primary Color: Green
  • Dimensions: 4 ft x 30 in x 0.08 in
  • Length: 4ft
  • Width: 30in
  • Thickness: 0.08in
  • Resistance: RTT:5.8 x 10^7 to 6 x 10^8 5.2 x 10^7 to 5 x 10^8Ω
  • Number of Layers: 2
  • Decay Time: <0.01s
  • Resistance Properties: Hot Solder Resistant Chemical Resistant Abrasion Resistant
  • Standards Met: ANSI EOS/ESD S4.1, Fed Std 101 Method 4046, RoHS Complaint
  • Includes: Snaps, Ground Cord
Pack: Each
