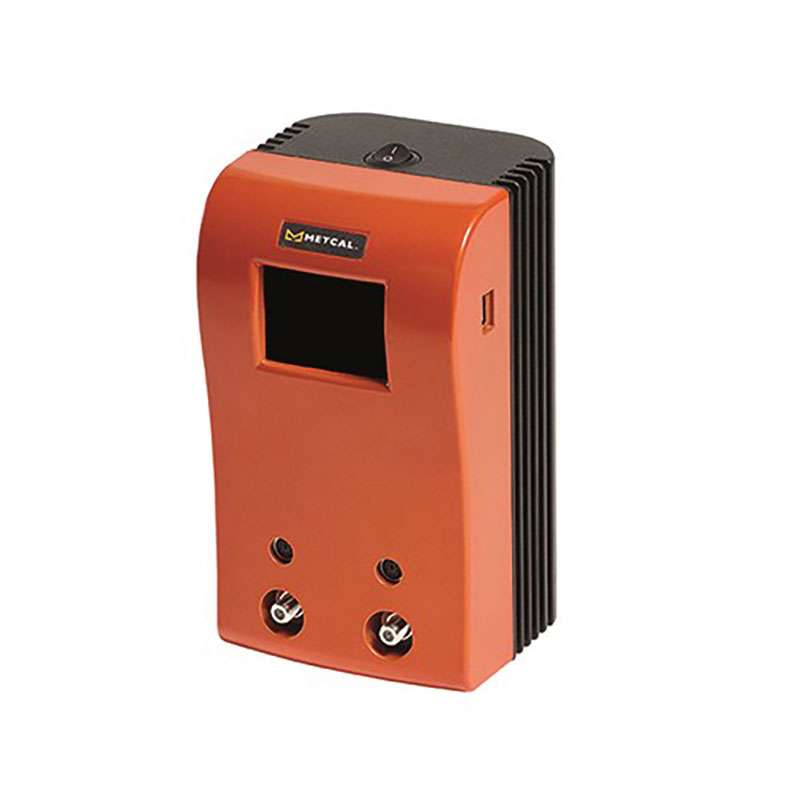

CV-500 Connection Validation™ Two Port Switchable Power Supply, 120-240VAC

Hisco #:CV-PS500-33709

MFG #:CV-PS500

$
Manufacturer Lead Time When Not In Stock10 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1

The Metcal CV-PS500 is the CV500 power supply. The CV-500 packs all of the Connection Validation™ technology into a compact, economical housing and features Smartheat™ power on demand technology, a 2.8" touchscreen with bold graphics,and intergrated net power meter with an optional tip temperature display. The CV-500 system excels at SMD touch-up and small component rework using the Ultrafine hand-piece and Ultrafine tweezer handpiece (sold separately in the accessories tab).

Metcal CV-PS500 Features:
  • Closed loop bi-directional communication
  • Backwards compatible with MX series power supplies
  • Password protection
  • CV series tips from 500-F - 900-F
  • Protects power supply from non-conforming cartridges
  • Provides traceability information
  • Stores and records cartridge attributes
  • Closed loop bi-directional communication
  • Power Supply Only
  • For SMD touch-up and rework, purchase the CV-UK2 ultrafine upgrade kit (see accessories tab).
Metcal CV-PS500 Specifications:
  • Input Voltage: 100 - 240 VAC, grounded circuit
  • Ambient Operating Temp.: 10 to 40°C
  • Includes: CV500 Power Supply, CV-H1-AV Handpiece, MX-W1AV Workstand, Cartridge Removal Pad.
  • Cartridges not included
  • Max. Enclosure Temperature: 55°C
  • Input Line Voltage: 100 - 240 VAC, grounded circuit
  • Input Line Frequency: 50/60 Hz
  • Rated Power Consumption: 45W
  • Output Power: 40W max
  • Output Frequency: 13.56 MHz
  • Heating Method: Induction
  • Display: 2.8” Color TFT LCD Display
  • Resolution: 320*240 RGB
  • Size: 2.8”
  • Active Area: 43.20 x 57.60 mm
  • Connections: Single Port
  • Communications: USB
  • Power Supply Dim. w x d x h (mm): 121 x 121 x 222
  • Power Supply Weight (kg): 3.35
  • Certification / Marking: CE TUV
  • Tip-to- Ground Potential: 2mV
  • Tip-to-Ground Resistance: 2ohms
  • Idle Temperature Stability: 1.1°C in still air
  • Tip Temperature Accuracy: Meets or exceeds IPC J-STD-001 Standard
  • Hand-piece cable length: L=183cm (72”), burn proof, ESD safe
  • RF Connector: F type power connector
  • LED Power Connector: 6 pin DIN
  • Operation: 2 single port or dynamic dual simultaneous
  • Firmware upgrade Via USB port and appropriate software with compatible computer and cables

Product Description

The Metcal CV-PS500 is the CV500 power supply. The CV-500 packs all of the Connection Validation™ technology into a compact, economical housing and features Smartheat™ power on demand technology, a 2.8" touchscreen with bold graphics,and intergrated net power meter with an optional tip temperature display. The CV-500 system excels at SMD touch-up and small component rework using the Ultrafine hand-piece and Ultrafine tweezer handpiece (sold separately in the accessories tab).

Metcal CV-PS500 Features:
  • Closed loop bi-directional communication
  • Backwards compatible with MX series power supplies
  • Password protection
  • CV series tips from 500-F - 900-F
  • Protects power supply from non-conforming cartridges
  • Provides traceability information
  • Stores and records cartridge attributes
  • Closed loop bi-directional communication
  • Power Supply Only
  • For SMD touch-up and rework, purchase the CV-UK2 ultrafine upgrade kit (see accessories tab).
Metcal CV-PS500 Specifications:
  • Input Voltage: 100 - 240 VAC, grounded circuit
  • Ambient Operating Temp.: 10 to 40°C
  • Includes: CV500 Power Supply, CV-H1-AV Handpiece, MX-W1AV Workstand, Cartridge Removal Pad.
  • Cartridges not included
  • Max. Enclosure Temperature: 55°C
  • Input Line Voltage: 100 - 240 VAC, grounded circuit
  • Input Line Frequency: 50/60 Hz
  • Rated Power Consumption: 45W
  • Output Power: 40W max
  • Output Frequency: 13.56 MHz
  • Heating Method: Induction
  • Display: 2.8” Color TFT LCD Display
  • Resolution: 320*240 RGB
  • Size: 2.8”
  • Active Area: 43.20 x 57.60 mm
  • Connections: Single Port
  • Communications: USB
  • Power Supply Dim. w x d x h (mm): 121 x 121 x 222
  • Power Supply Weight (kg): 3.35
  • Certification / Marking: CE TUV
  • Tip-to- Ground Potential: 2mV
  • Tip-to-Ground Resistance: 2ohms
  • Idle Temperature Stability: 1.1°C in still air
  • Tip Temperature Accuracy: Meets or exceeds IPC J-STD-001 Standard
  • Hand-piece cable length: L=183cm (72”), burn proof, ESD safe
  • RF Connector: F type power connector
  • LED Power Connector: 6 pin DIN
  • Operation: 2 single port or dynamic dual simultaneous
  • Firmware upgrade Via USB port and appropriate software with compatible computer and cables

Technical Information

BrandMetcal
Weight: 5.732
Country Of Origin: CN
