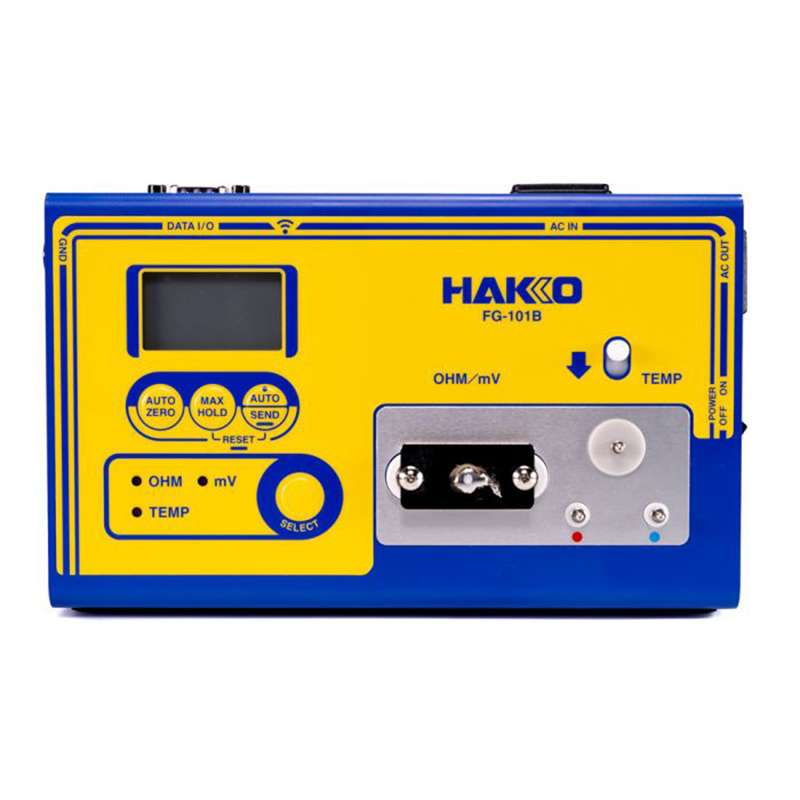

Soldering Iron Tester with Calibration Certificate

Hisco #:FG101B-03-3021

MFG #:FG101B-03

Our Price: $1,282.27 EA
Manufacturer Lead Time When Not In Stock20 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1

The HAKKO FG101B-03 Soldering Iron Tester measures tip temperature, leak voltage, and tip-to-ground resistance. Leak voltage and tip-to-ground resistance can be easily measured due to automatic self-correction of the zero point.

Hakko FG101B-03 Features:
  • Resistant to drift and ambient temperature variations
  • Highly reliable and accurate measurements
  • MAX HOLD function displays maximum value when MAX HOLD button is pressed
  • Suitable for Lead-Free solder applications
  • AUTO HOLD feature that ends measurements automatically once the tip temperature is stabilized
  • Able to switch between °Fahrenheit and °Celsius
Hakko FG101B-03 Specifications:
  • Brand: Hakko
  • Part No.: FB101B-03
  • Applied Sensor: K(CA) Type Thermocouple
  • Temperature Range: 32°-1300° F (0°-700°C)
  • Voltage Resolution: 0.1 mV
  • Voltage Precision: 0-40 mV (AC)
  • Resistance Resolution: 0.1 ohms
  • Resistance Management Range: 0-40 ohms
  • LCD Display: 3.5 digit
  • Power Consumption: 120V, 3.2W
  • Dimensions: 8.31 x 2.09 x 4.96 in
  • Weight: 2.09 lb
  • Package Contents: FG101-03 Tip Thermometer, 191-212 Replacement Sensor (pack of 10), B2468 Fuse, B1950 Conductive Wire, B2419 Power Cord, B1754 Grounding Clip, User Guide

Product Description

The HAKKO FG101B-03 Soldering Iron Tester measures tip temperature, leak voltage, and tip-to-ground resistance. Leak voltage and tip-to-ground resistance can be easily measured due to automatic self-correction of the zero point.

Hakko FG101B-03 Features:
  • Resistant to drift and ambient temperature variations
  • Highly reliable and accurate measurements
  • MAX HOLD function displays maximum value when MAX HOLD button is pressed
  • Suitable for Lead-Free solder applications
  • AUTO HOLD feature that ends measurements automatically once the tip temperature is stabilized
  • Able to switch between °Fahrenheit and °Celsius
Hakko FG101B-03 Specifications:
  • Brand: Hakko
  • Part No.: FB101B-03
  • Applied Sensor: K(CA) Type Thermocouple
  • Temperature Range: 32°-1300° F (0°-700°C)
  • Voltage Resolution: 0.1 mV
  • Voltage Precision: 0-40 mV (AC)
  • Resistance Resolution: 0.1 ohms
  • Resistance Management Range: 0-40 ohms
  • LCD Display: 3.5 digit
  • Power Consumption: 120V, 3.2W
  • Dimensions: 8.31 x 2.09 x 4.96 in
  • Weight: 2.09 lb
  • Package Contents: FG101-03 Tip Thermometer, 191-212 Replacement Sensor (pack of 10), B2468 Fuse, B1950 Conductive Wire, B2419 Power Cord, B1754 Grounding Clip, User Guide

Technical Information

BrandHakko
Product TypeSoldering Testers
Country Of Origin: JP
