Fluke logo

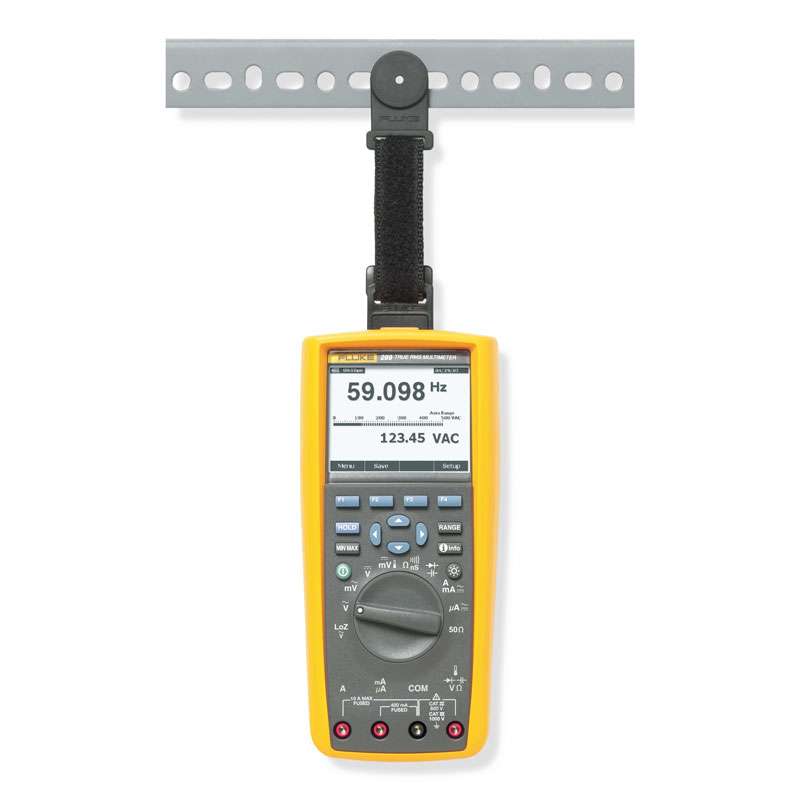

Model 289 True-RMS Industrial Logging Multimeter with TrendCapture

FLUKE-289-19816 MFG #: FLUKE-289
$649.99 / EA
Available to Order - 0 on Hand
  • Brand Name: Fluke
  • Series: 280
  • Product Type: Digital Multimeter
  • Functions Measured: AC Voltage; DC Voltage; AC Current; DC Current; Resistance; Continuity; Diode Test; Capacitance; Frequency; Temperature
  • Display Type: LCD
  • Power Source: Battery
  • Maximum AC Current Measurement: 10A
  • Minimum AC Current Measurement: 500µA
  • Maximum AC Voltage Measurement: 1000V
  • Minimum AC Voltage Measurement: 50mV
  • Maximum DC Current Measurement: 10A
  • Minimum DC Current Measurement: 500µA
  • Maximum DC Voltage Measurement: 1000V
  • Minimum DC Voltage Measurement: 50mV
  • Maximum Temperature Measurement: +2462°F
  • Minimum Temperature Measurement: -328°F
  • Maximum Capacitance Measurement: 100mF
  • Minimum Capacitance Measurement: 1nF
  • Best AC Current Accuracy: 5%
  • Best AC Voltage Accuracy: 3.5%
  • Best DC Current Accuracy: 5%
  • Best DC Voltage Accuracy: 5%
  • Best Resistance Measurement Accuracy: 8%
  • Best Temperature Measurement Accuracy: 1%
  • Best Capacitance Measurement Accuracy: 2%
  • AC Current Measurement Resolution: 0.001A
  • AC Voltage Measurement Resolution: 0.1V
  • DC Current Measurement Resolution: 0.001A
  • DC Voltage Measurement Resolution: 0.1V
  • Temperature Measurement Resolution: 0.1°F
  • Capacitance Resolution: 0.1mF
  • Battery Type: AA Alkaline Battery; NEDA 15 A Battery; IEC LR6 Battery
  • Safety Category: CAT III 1000; CAT IV 600
  • Dimensions: 2.38 x 4.03 x 8.75in
  • Safety Category Level: CAT III; CAT IV
  • Width: 4.03in, 6.0 in.
  • Minimum Operating Temperature: -20°C
  • Height: 3.0 in., 8.75in
  • Length: 11.0 in., 2.38in
  • Model Number: FLUKE-289
  • Maximum Operating Temperature: +55°C
  • Safety Category Voltage: 1000; 600V

The Fluke FLUKE-289 is a Series 280 digital multimeter with a minimum ac current measurement of 500.

The Fluke FLUKE-289 Features:
  • TrendCapture graphically displays logged data session to quickly determine whether anomalies may have occurred
  • Zoom on trend provides unprecedented ability to view and analyze TrendCapture data zoom in up to 14 times
The Fluke FLUKE-289 Specifications:
  • Series: 280
  • Product Type: Digital Multimeter
  • Functions Measured: AC Voltage DC Voltage AC Current DC Current Resistance Continuity Diode Test Capacitance Frequency Temperature
  • Display Type: LCD
  • Power Source: Battery
  • Maximum AC Current Measurement: 10A
  • Minimum AC Current Measurement: 500µA
  • Maximum AC Voltage Measurement: 1000V
  • Minimum AC Voltage Measurement: 50mV
  • Maximum DC Current Measurement: 10A
  • Minimum DC Current Measurement: 500µA
  • Maximum DC Voltage Measurement: 1000V
  • Minimum DC Voltage Measurement: 50mV
  • Maximum Resistance Measurement: 500MΩ
  • Minimum Resistance Measurement: 50Ω
  • Maximum Temperature Measurement: +2462°F
  • Minimum Temperature Measurement: -328°F
  • Maximum Capacitance Measurement: 100mF
  • Minimum Capacitance Measurement: 1nF
  • Best AC Current Accuracy: 5%
  • Best AC Voltage Accuracy: 3.5%
  • Best DC Current Accuracy: 5%
  • Best DC Voltage Accuracy: 5%
  • Best Resistance Measurement Accuracy: 8%
  • Best Temperature Measurement Accuracy: 1%
  • Best Capacitance Measurement Accuracy: 2%
  • AC Current Measurement Resolution: 0.001A
  • AC Voltage Measurement Resolution: 0.1V
  • DC Current Measurement Resolution: 0.001A
  • DC Voltage Measurement Resolution: 0.1V
  • Temperature Measurement Resolution: 0.1°F
  • Resistance Measurement Resolution: 0.1MΩ
  • Capacitance Resolution: 0.1mF
  • Battery Type: AA Alkaline Battery NEDA 15 A Battery IEC LR6 Battery
  • Safety Category: CAT III 1000 CAT IV 600
  • Dimensions: 2.38 x 4.03 x 8.75in
  • Safety Category Level: CAT III CAT IV
  • Width: 4.03in
  • Minimum Operating Temperature: -20°C
  • Height: 8.75in
  • Length: 2.38in
  • Model Number: FLUKE-289
  • Maximum Operating Temperature: +55°C
  • Safety Category Voltage: 1000 600V
