Handheld Vibration Tester and Analyzer with On-Board Identification and Location

FLUKE-810-19816 MFG #: FLUKE-810
$10,349.99 / EA
Available to Order - 0 on Hand
  • Brand Name: Fluke
  • Product Type: Spectrum Analyzers
  • Length: 10.0 in.
  • Width: 7.0 in.
  • Height: 2.0 in.

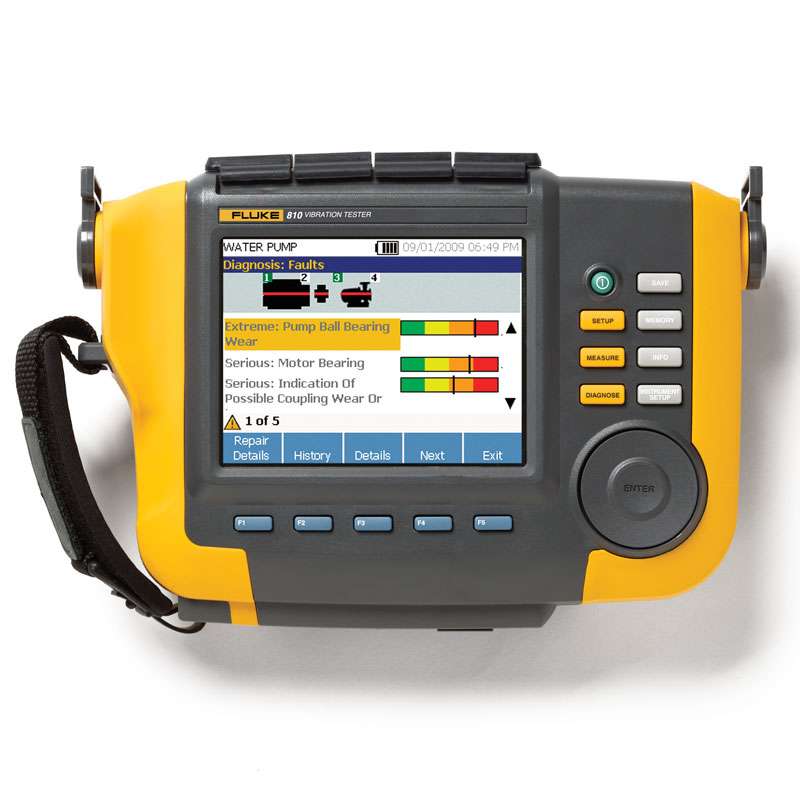

The Fluke FLUKE-810 is a hand held vibration test meter.

Fluke FLUKE-810 Features:
  • On-board identification and location of the most common mechanical faults (bearings, misalignment, unbalance, looseness) focus maintenance efforts on root cause, reducing unplanned downtime
  • Fault severity scale with four severity levels helps you prioritize maintenance work
  • Repair recommendations advise technicians on corrective action
  • On-board context sensitive help provides real-time tips and guidance to new users
  • 2 GB expandable on-board memory provides enough space for your machinery’s data
  • Self-test function ensures optimal performance and more time on the job
  • Laser tachometer for accurate machine running speed promotes confident diagnoses
  • Tri-axial accelerometer reduces measurement time by 2/3 over single axis accelerometers
  • Viewer PC Software expands data storage and tracking capacity
  • Troubleshoot problem equipment and understand the root cause of failure
FLUKE-810 Specifications:
  • Operating temperature: 0°C to 50°C(32°F to 122°F)
  • Display: 1/4 VGA, 320 x 240 color(5.7 inch diagonal) TFT LCD with LED backlight
  • Operating system: WinCE 6.0 core
  • Usable Bandwidth: 2 Hz to 20 kHz
  • Triaxial sensor connection: 4 pin M12 connector
  • Single axis sensor connection: BNC connector
  • Tachometer Connection: Mini DIN 6 pin connector
  • PC Connection: Mini ‘B’ USB (2.0) connector
  • Diagnosis details: Plain-text diagnosis, fault severity(slight, moderate, serious, extreme), repair details, cited peaks, and spectra
  • Diagnose standard faults: unbalance, looseness, misalignment and bearing failures
  • Language support: English, French German, Italian, Japanese, Portuguese, simplified Chines, and Spanish
  • Sensor accelerometer range: 80 g peak
  • Tachometer detection: Laser diode class 2
  • Tachometer cable length: 19.5 "
  • Minimum hardware requirements
  • Operating system requirements: 1 GB RAM
  • Battery type: Lithium-ion, 14.8 V, 2.55 Ah
  • Dimensions: 7-1/4 x 2-3/4 x 10-1/2"
  • FLUKE-810 Includes:
    • Vibration Tester with diagnostic technology
    • Tri-axial accelerometer, magnet mount, mounting pad kit with adhesive, accelerometer quick-disconnect cable
    • Laser tachometer and storage pouch
    • Smart battery pack with cable and adapters
    • Shoulder strap and adjustable hand strap
    • Viewer PC software
    • Mini USB to USB cable
    • Getting started guide, illustrated quick reference guide, and users manual CD-ROM
    • Carrying case
  • Pack: Each
