IP Series PermaSleeve Wire Marking Sleeves, B-342, 1-8 AWG,White, 500 per Roll

PS-500-150-WT-6691 MFG #: PS-500-150-WT
$508.70 / PK
Available to Order - 0 on Hand
  • Brand Name: Brady
  • Product Type: Wire Marker Sleeve
  • Marker Type: Heat-Shrink Sleeve
  • Material: Polyolefin
  • Material Category: Plastic
  • Color: White
  • Primary Color: White
  • Width: 1.5in
  • Height: 0.85in
  • Wire Size: 8 to 1AWG
  • Wire Diameter: 0.18 to 0.45in
  • Supplied Diameter: 12.7mm
  • Recovered Diameter: 4.7mm
  • Brady Material Number: B-342
  • Resistance Properties: Abrasion Resistant; Chemical Resistant; UV Light Resistance; Humidity Resistance; Solvent Resistance
  • Standards Met: UL Recognized Component to UL Listed 224, UL File E333786, RoHS Compliant 2005/618/EC, SAE AMS-DTL-23053/5C (Class 1), SAE AS-81531, ASTM E162, ASTM E662, ASTM G155 Cycle 1, ASTM D2671, MIL-STD-202, Method 215K
  • Package Quantity: 500RL
  • Gauge: 8 to 1
  • Storage Conditions: Ambient

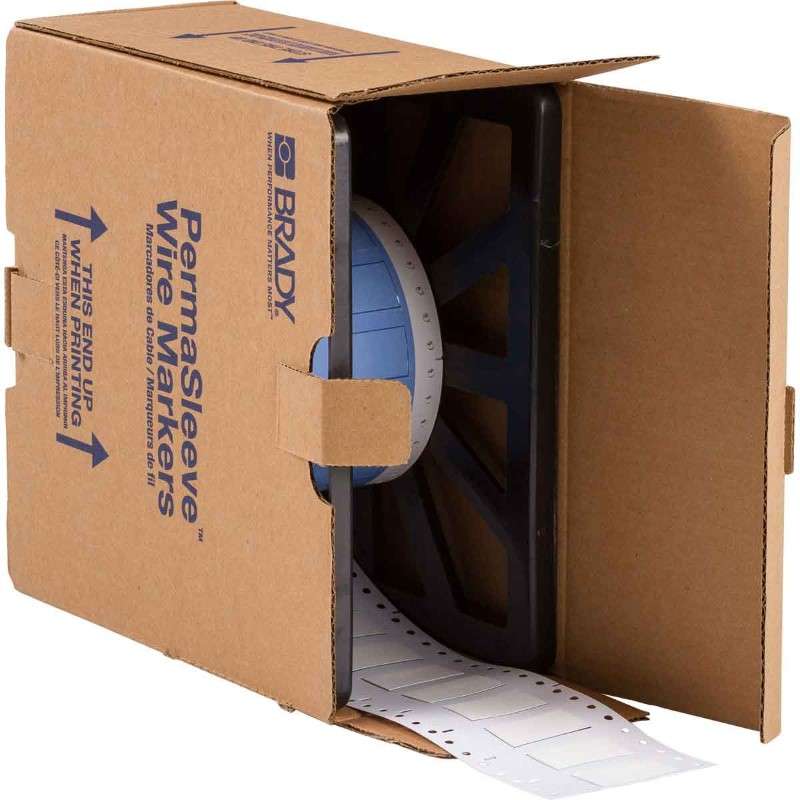

The Brady PS-500-150-WT is a white, polyolefin, 0.85 x 1.5" wire marker sleeve available as 500 pieces per roll. The flexible, flame retardant sleeve offers fast and permanent wire marking solutions.

Brady PS-500-150-WT Features:
  • Brand: PermaSleeve®
  • Product Type: Wire Marker Sleeve
  • Marker Type: Heat-Shrink Sleeve
  • Material: Polyolefin
  • Material Category: Plastic
  • Color: White
  • Primary Color: White
  • Width: 1.5in
  • Height: 0.85in
  • Wire Size: 8 to 1AWG
  • Wire Diameter: 0.18 to 0.45in
  • Supplied Diameter: 12.7mm
  • Recovered Diameter: 4.7mm
  • Brady Material Number: B-342
  • Resistance Properties: Abrasion Resistant, Chemical Resistant, UV Light Resistance, Humidity Resistance, Solvent Resistance
  • Standards Met: UL Recognized Component to UL Listed 224, UL File E333786, RoHS Compliant 2005/618/EC, SAE AMS-DTL-23053/5C (Class 1), SAE AS-81531, ASTM E162, ASTM E662, ASTM G155 Cycle 1, ASTM D2671,
Pack: Each
